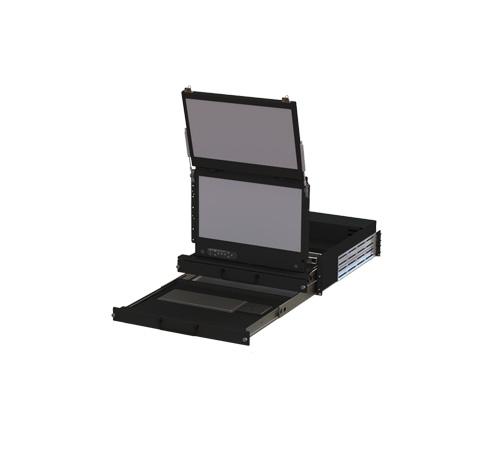

3U Rack Drawer Multi-Head Display & KB, 3U Dual Top/bottom 2x17.3" 1920x1080 LCD 20" Deep (Model: DHK2D1730TBc)

3U Rack Drawer with Multi-Head Display & Keyboard, 3U Dual Top and bottom Wide 2x17.3" 1920 x 1080 LCD 20" Deep

3U Rack Drawer with Multi-Head Display & Keyboard, 3U Dual Top and bottom Wide 2x17.3" 1920 x 1080 LCD 20" Deep

Inquiry/Quote Request
DHK2D1730TBc
  • Overview
  • Specifications
  • Download

This Rack Drawer 3U with Dual 17.3" FHD Panels, The Keyboard and Mouse/Pointer/ Trackball can be Pulled Out and Stowed Independently. MIL-SPEC C-300 Friction Slide Rails allow you to position the monitor and keyboard to your Liking. It also has Torque Hinges and Shocks to help stabilize the Monitor when in a deployed Position. High Bright, Resistive or PCAP touch


Key Featrues:
  • FHD Native Resolution
  • Fits INSIDE a 19" Rack
  • Rugged All-Aluminum Welded Construction
  • Folds to 3U Rack Space
  • Only 20" Deep, Perfect for Transit Case Applications
  • Resistive and PCAP Touch Options

Video Controllers

V33x Controller
  • Mid Level FHD Controller
  • Max Resolution: 1920 x 1200
  • Available Inputs: HDMI , Display Port , VGA
  • OSD Command and Control

V35x Controller
  • Mid Level FHD Controller
  • Max Resolution: 1920 x 1200
  • Available Inputs: DVI (or HDMI) , Display Port , VGA
  • OSD Command and Control


LCD Options
17.3" FHD LED Back-lit LCD
  • Viewing Angles: 80L/80R/60U/80D
  • Contrast Ratio: 600:1
  • Brightness: 400 Nits
  • Response Time: 40 ms
  • Surface Finish: Hard Coat/ 3H
  • Colors: 16.7Mil

17.3" FHD LED Back-lit LCD
  • Viewing Angles: 80L/80R/60U/80D
  • Contrast Ratio: 600:1
  • Brightness: 1000 Nits
  • Response Time: 40 ms
  • Surface Finish: Hard Coat /3H
  • Colors: 16.7M


Options
  • Conformal Coated Electronics
  • Optically Bonded Cover Glass
  • High Bright Panels
  • Touch Options, Resistive and PCAP
