3U Rugged Military MIL-STD-810G Rack Mount Server w/ Intel Xeon Gold 6242, 16GB RAM, Windows 11 Pro (Model: BMRM300-V1)
3U Rugged Military MIL-STD-810G Rack Mount Server with Intel Xeon Gold 6242, 16GB 288-Pin DDR4, Samsung 870 EVO SATA III SSD 1TB 2.5 with Windows 11 Pro
X
Inquiry/Quote Request
- Overview
- Specifications
- Download

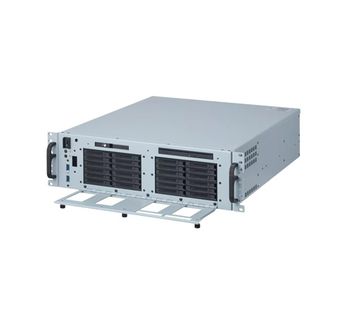

The BMRM300-V1 is a 3U rugged rackmount server meticulously designed to deliver compactness, versatility, and powerful performance in a single robust unit. It features 25 removable 2.5" trays, providing extensive storage capacity to meet the needs of a wide range of applications. Built to comply with stringent MIL-STD-810G standards, this server is engineered to withstand and excel in the most challenging and harshest operational environments, making it an ideal choice for mission-critical tasks where reliability and durability are paramount. |
| Motherboard | Supermicro X11SPL-F Motherboard |
| CPU | Intel Xeon Gold 6242 Processor 16 Core 2.80GHZ |
| MEMORY | 16GB 288-Pin DDR4 3200 (PC4-25600) Server Memory |
| OS DRIVE | Samsung 870 EVO SATA III SSD 1TB 2.5 |
| STORAGE | 24x 2TB removable |
| EXPANSION SLOTS | 2 PCIe 3.0 x8 (in x16 slot), 4 PCIe 3.0 x8, 1 PCIe 3.0 x4 (in x8 slot) |
| PORTS | 8 USB 2.0 port(s) (2 rear; 6 via header) 2 USB 3.0 port(s) (2 rear) 3 USB 3 port(s) (2 via header; 1 type A) 2 RJ45 Gigabit Ethernet LAN ports 1 IPMI LAN Port |
| POWER SUPPLY | 800W REDUNDANT POWER SUPPLY |
| DIMENSIONS | Height: 3U, Width: 18.9", Depth: 19.7" |
| WEIGHT | 39.7 LBS (18KG) |
| OPTICAL DRIVE | Internal Blu Ray/DVD/CD Burner |
| Raid | MegaRAID 9670-24i |
| Cables | DiliVing SlimSAS X8 to 8*SATA SFF-8654 74P to 8*SATA 7P |
| Slimline SATA to SATA Adapter with Power | |
| OS | Windows 11 Pro |
| Cooler | Dynatron B13, square cooler, 3647, 2U, 205Watt |
