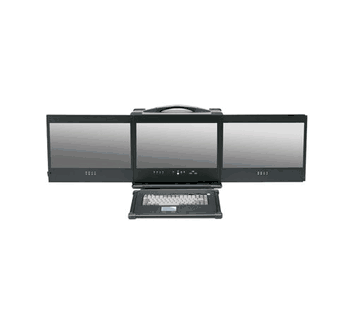

3x 17.3" LCD 1920x1080, Aluminum Alloy Portable Server Enclosure w/ Single Intel Xeon Gold 6312U (Model: BPCW31700HD-MBD)

Aluminum alloy portable server enclosure with rubber corners 3x 17.3" LCD (1920x1080 Resolution), DP Connectors with Single Intel Xeon Gold 6312U, Complimentary Carrying Bag with wheels

Aluminum alloy portable server enclosure with rubber corners 3x 17.3" LCD (1920x1080 Resolution), DP Connectors with Single Intel Xeon Gold 6312U, Complimentary Carrying Bag with wheels

Inquiry/Quote Request
BPCW31700HD-MBD
  • Overview
  • Specifications
  • Download

Features:
  • All-in-one design multi-screen portable solution
  • Built-in 3x 17.3" LCD display, 1920x 1080 resolution
  • Anti-reflection tempered glass
  • Support standard ATX motherboard
  • Offer 7 full length slots expansion capability
  • Creates a stretched desktop with a max.
  • Resolution of 5760x 1080 (3x 1920x 1080)
  • Open an application on each display or span one across 3-screens
  • Experience surround gaming by expanding supported 3D games
  • Industrial Keyboard multi-language with touchpad
  • Offer 2x5.25”, 1x 3.5” drive bay, 1 slim DVD-RW
  • Carrying case to manage portable PC with ease

Chassis Aluminum alloy portable server enclosure with rubber corners
Display 3x 17.3" LCD (1920x1080 Resolution), DP Connectors
K/B & Mouse Foldable USA language keyboard w/touchpad
CPU Processor Single Intel Xeon Gold 6312U 3rd Gen Xeon24-Core 2.4GHz Processor
Motherboard SUPERMICRO MBD-X12SPL-F-O ATX Server Motherboard LGA 4189 Intel C621A, TPM 2.0
Memory 32GB DDR4 SDRAM ECC/REG Server Memory (8GB x 4)
M/B Slots Slot1-PCIExpress4.0x8/Broadcom9341-8iRAIDcard
Slot2-PCIExpress4.0x16/NVidiaT1000graphicscard
Slot3-PCIExpress4.0 x8/x16
Slot4-PCIExpress4.0x16/x8
Slot5-PCIExpress3.0x8/x8
Slot6-PCIExpress3.0x8/PCEAC51WIFI
Slot7-PCIExpress3.0x8/CMI8738audiocard
Video Card NVIDIA T1000,  8 GB GDDR6 - PCIe 3.0 x16 low profile - 4 x Mini DisplayPort
Video cable adapter DisplayPort to Mini DisplayPort 1.4 Monitor Extension Cable, 90 degree angled
Removable  HDD kit "ToughArmor MB516SP-B, 16 x 2.5"" SSD / HDD (Max Drive Height: 7mm)
8x removable kits connected through Raid card
8x removable kits connected through X12SPL-F M/B
Raid Card Broadcom MegaRAID SAS 9341-8i (RAID) - 8 Channel - SATA / SAS 12Gb/s
Heatsink Dynatron Heat Sink Socket 4189, 2U Model N11
LAN 2x 10/100/1000 Gigabit Ethernet Controllers
Wifi Card Asus Wireless-AC750 Dual-band PCI-E Adapter, Model PCE-AC51
Sound Card PCI-E Express 6 Channel 5.1 CMI8738 Audio Sound Card
Optical Drive Slim DVDRW ODD
Power Supply Power Supply
OS None
Environmental Factors
  Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Approval CE, FCC, RoHS
Carrying Bag Complimentary carrying bag with wheels
Dimension 17.46" x 15.34" x 11.06" (443.42 x 389.59 x 281mm)
System Weight Approx ~ 48 lbs
