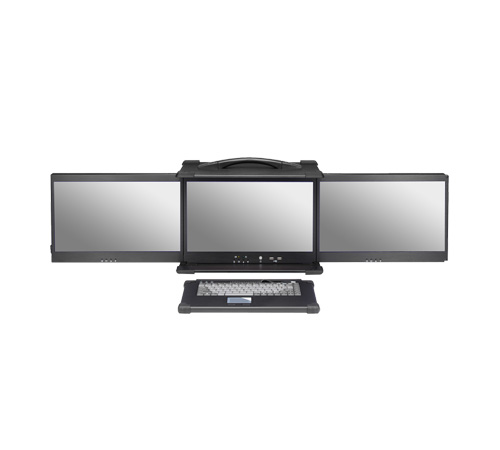

3x 17.3" LCD Rugged Portable Enclosure w/ Intel Core i7-12700 CPU, 64GB DDR5, GeForce GTX 1660 (Model: BPCW31700-i7-Z690)

3x 17.3" LCD (1920x1080 each Display) Rugged Portable Enclosure, Offer 7 full-length Expansion slots with Intel Core i7-12700 CPU, 64GB DDR5 Memory, ZOTAC ZT-T16600K-10M GeForce GTX 1660, 850W Power Supply, 110/220v Auto Switching

3x 17.3" LCD (1920x1080 each Display) Rugged Portable Enclosure, Offer 7 full-length Expansion slots with Intel Core i7-12700 CPU, 64GB DDR5 Memory, ZOTAC ZT-T16600K-10M GeForce GTX 1660, 850W Power Supply, 110/220v Auto Switching

Inquiry/Quote Request
BPCW31700-i7-Z690
  • Overview
  • Specifications
  • Download
Welcome to the world of rugged computing excellence! At i-Tech Company, we are proud to introduce our cutting-edge 17-inch Triple Rugged Portable PC, designed to meet the demands of industrial-grade computing environments. This innovative solution combines durability, versatility, and performance to empower professionals across various industries.

With its triple 17-inch LCD display setup, robust ATX motherboard support, and ample expansion capabilities, our Triple Rugged Portable PC delivers unmatched computing power and flexibility. Whether you're seeking a reliable solution for mission-critical tasks or immersive gaming experiences, this portable PC is engineered to exceed your expectations.


Features:
  • Compact and versatile, offering a multi-screen portable solution.
  • Features 3 built-in 17.3" LCD displays with a sharp 1920x1080 resolution and anti-reflection tempered glass.
  • Supports standard ATX motherboards and provides 7 full-length expansion slots.
  • Creates a stretched desktop with a maximum resolution of 5760x1080 across 3 screens (3x 1920x1080).
  • Allows opening applications on individual displays or spanning them across all three screens.
  • Enables immersive surround gaming experience with expanded support for 3D games.
  • Includes an industrial keyboard with multi-language support and touchpad.
  • Comes with a carrying case for easy management and portability.
  • Equipped with a PS2 850W power supply compatible with 100~240VAC.
  • Offers 2x 5.25" and 1x 3.5" drive bays for storage options.
  • Includes a trolley case for convenient management of the portable PC.

Chassis Rugged portable enclosure with rubber corners.
Series  Display 3x17.3" LCD (1920x1080 Resolution/each display) 3xDP connectors, w/o tempered glass
K/B & Mouse Detachable industrial USA language keyboard w/touchpad
CPU Processor Intel Core i7-12700 CPU ADL 12Cores / 20Threads 2.1GHz 25M LGA 1700
CPU Fan: Low Heatsink and fan
Motherboard: Mfr Part Number: PRIME Z690-A Chipset: Intel Z690, Memory: 4x slots (upto 64GB)
Slots: 5
Intel12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s) Intel Z690 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x4 slot
2 x PCIe 3.0 x1 slotsSlot Location 1 : PCI-E x1 (Gen2 X1 Link)
On-Board Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
LAN 1 x Intel 2.5Gb Ethernet port
Form Factor ATX 12"" x 9.6"" (30.5cm x 24.4cm)
Memory 64GB DDR5 Memory (16GBx4)
Video Card ZOTAC ZT-T16600K-10M GeForce GTX 1660 Twin Fan 6GB GDDR5 192B 3xDP/HDMI
Input/Output Port 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C )
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
1 x DisplayPort , 1 x HDMI port, 1 x Intel 2.5Gb Ethernet port, 5 x Audio jacks
1 x Optical S/PDIF out port
M.2 1x WD_BLACK 1TB NVMe Internal Gaming SSD Solid State Drive - Gen4 PCIe, M.2 2280
LAN 1x Intel 2.5Gb Ethernet port Ethernet port(RJ45)
Optical Drive Slim DVDRW Internal Drive
Power Supply 850W Power Supply. 110/220v Auto Switching
OS Windows 11 Pro 64-bit Media + Installation
Carrying Bag Complimentary carrying bag with wheels
Dimension 443.8x 394.6x 293 mm (Wx Hx D)
Weight Approx ~ 47 lbs
Environmental Factors
  Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Approval CE, FCC, RoHS
