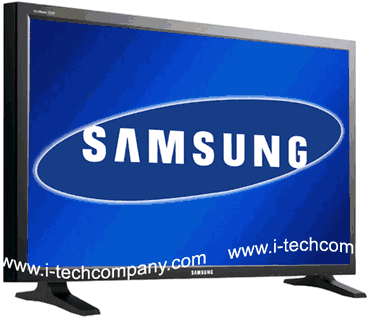

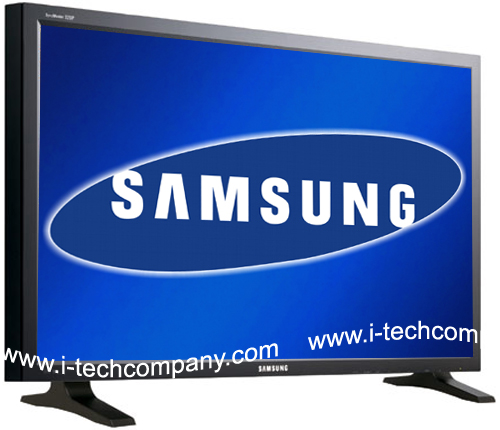

400PX: 40" Widescreen Samsung LCD Multimedia Display (SamSung LCD Model:400PX)
- Overview
- Viewable Image Size: 39.6"
- Contrast Ratio (Typical): 1200:1
- Response Time: 8ms (G to G)
- Viewing Angle: 178°/178°
- Input Video: Analog RGB, DVI-D, S-Video, BNC (Component Video / PC), RS-232C (9-pin D-sub), USB, Audio (2XRCA L/R, 1 x Stereo PC), Video (Composite)
- Special Features: Anti-image retention function (DNIe), PIP/PDP/POP, HDCP, Safety lock, MagiNet, Video Wall (2x2, 3x3, 1x5, 5x1, 4x4)
Features and specifications are subject to change without prior notice.
400PX: 40" Widescreen Samsung LCD Multimedia Display (SamSung LCD Model:400PX)
X
Inquiry/Quote Request
| 400PX 40" wide screen Samsung LCD Multimedia Display (SamSung LCD Model:400PXN). Samsung's 400PX brings you special features such as anti-image retention (DNIe) and HDCP. It's easy applicable for video walls is great for digital signage to promote your business. |
Samsung Widescreen Display Features
| 400PX Quick Guide: | |
| * Instroduction | |
| * Set up | |
| * On Screen Display | |
Specifications
| Model | 400PX | |
| Panel Type: |  a-si TFT/PVA |
|
|
||
| Viewable Size: | 39.6" |
|
|
||
| Pixel Pitch: | 0.648 x 0.648 mm |
|
|
||
| Contrast Ratio (Typical): | 1200:1 |
|
|
||
| Response Time (Typical): | 8 ms (G to G) |
|
|
||
| Supported Colors: | 16.7 million |
|
|
||
| Aspect Ratio: | 16:9 |
|
|
||
| Viewing Angle (H/V, Typical): |
178°/178° (CR>5) |
|
|
||
| Brightness (Typical): | 500 cd/m² |
|
|
||
| Interface: | Analog/Digital |
|
|
||
| Maximum Resolution: | 1366 x 768 |
|
|
||
| Frequency: | Horizontal: 30~70 kHz Vertical: 50~85 Hz |
|
|
||
| Bezel Color: | Black |
|
|
||
| Power consumption: | 280 Watts |
|
|
||
| Input Video Signal: | Analog RGB, DVI-D, S-Video, BNC (Component Video / PC), RS-232C (9-pin D-sub), USB, Audio (2XRCA L/R, 1 x Stereo PC), Video (Composite) |
|
|
||
| Output Video Signal: | Analog RGB, DVI-D, S-Video, BNC (Component Video / PC), RS-232C (9-pin D-sub), Speaker (10W x 2ch.), Video (Composite) |
|
|
||
| Sync Type: | Seperate H/V, Composite H/V, SOG |
|
|
||
| Plug & Play: | DDC 2B |
|
|
||
| Accessory: | Speaker (SP-L400PB/S), Wall mount bracket (WMB-4050PS) |
|
|
||
Weight
|
||
| Net: Gross: |
51.81 lbs 65.04 lbs |
|
|
||
| Dimensions |
|
|
| with stand: Without stand: Packaged |
38.23??x 24.78??x 8.78?? 38.23??x 22.91??x 4.65?? 43.62??x 27.56??x 11.02?? |
|
|
||
| Special Features: | Anti-image retention function (DNIe), PIP/PDP/POP, HDCP, Safety lock, MagiNet, Video Wall (2x2, 3x3, 1x5, 5x1, 4x4) |
|
|
||
| Compatibility: | PC/Windows, Mac, Sun |
|
|
||
| Warranty (P/L/B): | 3/3/3 | |
| Size | ||
| 38.23" x 24.78" x 8.78" (with stand) 38.23" x 22.91" x 4.65" (without stand) 43.62" x 27.56" x 11.02" (packaged) |
||
