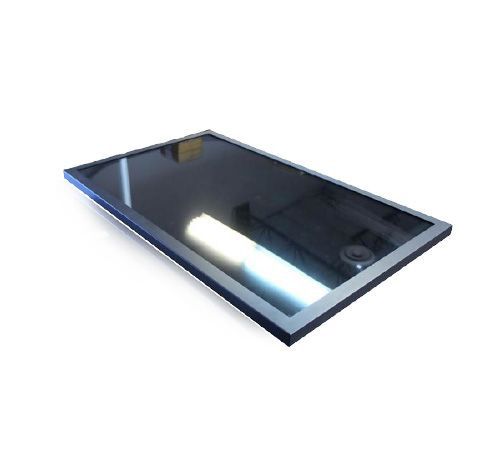

43" Front IP65 Panel LCD Monitor w/ AR Glass, Intel Celeron J6412 / RAM 4GB / SSD 128GB (Model: CCPCW4300HD-J-V1)

43" Industrial Panel LCD Monitor 1920x1080, 500nits with AR Glass, Front IP65, MF04V00 / J6412 Intel Celeron / RAM 4GB / SSD 128GB, 100-240VAC Power Input, Excluded OS Installation

43" Industrial Panel LCD Monitor 1920x1080, 500nits with AR Glass, Front IP65, MF04V00 / J6412 Intel Celeron / RAM 4GB / SSD 128GB, 100-240VAC Power Input, Excluded OS Installation

Inquiry/Quote Request
CCPCW4300HD-J-V1
  • Overview
  • Specifications
  • Download
The 43-inch Front IP65 Panel LCD Monitor (Model: CCPCW4300HD-J-V1) from I-Tech is engineered to deliver outstanding performance and durability in demanding industrial settings. Powered by an Intel Celeron processor, this monitor combines high-definition visuals with a rugged, waterproof front IP65 design, ensuring reliable operation even in harsh conditions. Its sleek design and robust construction make it an ideal solution for manufacturing, industrial automation, and public-facing applications where durability and quality are essential.


Features:
  • 43" Industrial Panel / 1920x1080 / 500nits
  • Pixel Pitch ( mm ) : 0.4902x0.4902
  • Chassis Design / Wall Mount
  • AR Glass / Front IP65
  • Fan Design
  • All Black Powder Coating
  • MF04V00 / J6412 ( 1.5M Cache, up to 2.60GHz Intel Celeron Processor_Q1’21 ) / RAM 4GB / SSD 128GB
  • 100-240VAC Power Input
  • Excluded OS Installation
Display Viewing Size Image 43"
Active Display Area (mm) 942.20 (H) x 531.60 (V)
Pixel Pitch (mm) 0.4902 x 0.4902
Resolution 1920x1080
Contrast Ratio  3000:1 (typ.)
Color 16.7M(6-bit+Hi-FRC)
Brightness 500nits
Viewing Angle -89-89 (H); -89-89 (V)
Recommended Resolution 1920 x 1080 @60Hz
Power Source 100-240VAC Power Input
Management VESA DPMS Compliant
Optional Touch YES
High Brightness 1000,1500
Auto Dimming YES
Power in DC24V
Remote Control YES


Motherboard SPECS:
  • Intel Elkhart Lake SoC Processor
  • 2* DDR4 3200MHz Dual Channel SO-DIMM up to 32GB
  • 2* Intel i225V 2.5GbE
  • 2* HDMI2.0b, 1* eDP (co-layout LVDS)
  • 2* COM, 3* USB3.1 (Gen.2), 5* USB2.0
  • 1* M.2 E-key 2230, 1* M.2 B-key 3042 W/SIM card slot
  • 1* M.2 M-key 2242/2280, 1* SATAIII (6Gb/s); 64GB eMMC (default)
  • Support 12~24V DC-in

Processor System Intel Elkhart Lake J6412 SoC Processor (TDP10W)
AMI Flash ROM BIOS
Memory 2* SO-DIMM DDR4 3200MHz Dual Channel SDRAM up to 32GB
Ethernet 2* Intel® i225V 2.5GbE
Storage 1* SATAIII
64GB onboard eMMC (MF04V04 & MF04V08)
1* M.2 M-key (2242/2280) PCIe Gen.3 x2/SATA interface Support NVME
Rear I/O 3* USB3.1 (Gen.2), 3* USB2.0
2* HDMI
2* RJ45
Line-out/MIC combo jack
DC-in (12~24V)
Watchdog Timer From Super I/O to drag RESETCON#
256 segments (10sec ~ 255min)
Form Factor 3.5” (5.8-in * 4.0-in, 148 * 102mm)
Expansion Slot 1* M.2 B-key (3042) Support USB3.1/USB2.0 interface W/SIM card slot
1* M.2 E-key (2230) Support USB2.0/PCIe Gen.3 x1 interface
Graphics Intel® HD Graphics, shared memory
1* eDP (Max Resolution: 4096x2160@60Hz)
1* LVDS (Max Resolution: 1920x1080@60Hz)
2* HDMI2.0b (Max Resolution: 4096x2160@60Hz)
Audio 2 channel HD audio: Realtek ALC888S
Integrated Storage N/A
Internal Connector 2* USB2.0
1* eDP (co-layout LVDS)
1* LVDS w/ Inverter
1* RS232, 1* RS232/422/485
1* SATAIII
1* SIM card slot (along with M.2 B-key)
1* GPIO (8 bit)
1* Audio Header
1* SMBUS
1* CPU FAN
1* TPM2.0 onboard (MF04V02 & MF04V07)
Power DC-IN 12~24V
AT/ATX Supported
- AT: Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Temperature
Operating 0°C ~ 60°C
Storage -20°C ~ 85°C
Humidity 10% ~ 90% RH @40°C (non-condensing)
Compliance CE, FCC, LVD, RoHS, REACH
OS Support UEFI Win10 64-bit, Win 10 IoT Enterprise 64-bit LTSC 2019, CentOS (Version 9), Debian (Version 11.3), Fedora-LXDE (Version 36-1.5), Fedora Workstation (Version36-1.5), Fedora Server (Version 36-1.5), Open SUSE (Version  15.4), Ubuntu Standard / LTS (Version 22.04), Ubuntu Server (Version 22.04), pfSense (Version 2.6.0), TrueNAS (FreeNAS) (Version 13.0), RedHat Enterprise (Version 9.0), OPNSense (Version 22.1.2)
