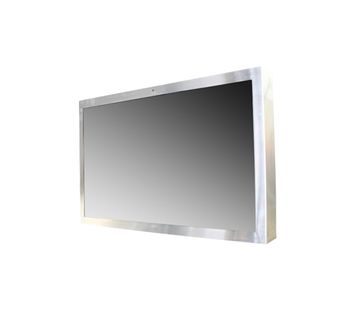

43" High Brightness Monitor IP65, Stainless Steel, VGA/HDMI, 5mm Glass, Air Curtain, Rear I/O & OSD Protection (Model: CCHW4300HB-SIP-H-C1)

43" 1920x1080 High Brightness 1000nits Stainless Steel 304 Enclosures with Full IP65 with VGA, HDMI, 100-240VAC, 5mm Tempered Glass/ Eye bolt x 3EA Air Curtain Design Inside, Rear I/O and OSD Protection Covers

43" 1920x1080 High Brightness 1000nits Stainless Steel 304 Enclosures with Full IP65 with VGA, HDMI, 100-240VAC, 5mm Tempered Glass/ Eye bolt x 3EA Air Curtain Design Inside, Rear I/O and OSD Protection Covers

CCHW4300HB-SIP-H-C1
  • Overview
  • Specifications
  • Download
Elevate your display capabilities with our 43-inch high brightness monitor, designed to deliver exceptional performance in challenging environments. With a striking 1000 nits brightness and robust IP65 protection, this monitor features a durable stainless steel enclosure and 5mm tempered glass for maximum resilience. Equipped with versatile VGA and HDMI inputs, it ensures clear, reliable visuals while the integrated air curtain design and rear I/O protection make it ideal for industrial and outdoor applications. Discover the perfect blend of power and durability with this state-of-the-art monitor.


Features:

  • 43" Industrial Panel / 1920x1080 / 1000nits
  • Operating Temp. : -30°C ~ 50°C
  • Stainless steel 304 Enclosures with Full IP65 / Wall Mount
  • Rear I/O and OSD Protection Covers
  • 5mm Tempered Glass / Eye Bolt x 3EA
  • Heater Blanket ( 510W / 110VAC ) with Temperature Controller / Heater Power ON-OFF switch
  • Air Curtain Design Inside
  • I/O (All Connectors are Waterproof Connectors / 6ft long) : VGA, HDMI, 100-240VAC (for Panel use) and 110VAC (for Heater use)

Display Viewing Size Image 43"
Active Display Area (mm) 935 (H) x 528 (V)
Pixel Pitch (mm) 0.4902(H)x 0.4902(V)
Resolution 1920x1080
Contrast Ratio 1100:1(typ.)
Color 16.7 M
Brightness 1000 cd/m
Viewing Angle -89~89 (H) ; -89~89 (V)
 Recommended Resolution 1920 x 1080 @ 60Hz
Signal Connector VGA, HDMI

Power Source 100-240VAC (for panel use) and 110VAC (for Heater use)
Consumption 49.28W typical, normal operation
Management VESA DPMS Compliant
Touch Optional
Optional High Brightness 1000,1500
Auto Dimming YES
POWER in DC24V
Remote Control YES
IO AV, DP
