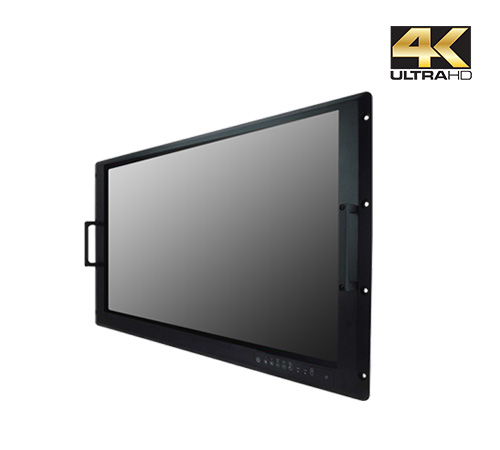

43" Rack Mount 4K UHD Display, 500nits, 4000:1, VGA+DVI+HDMI Input w/ PCAP Multi Touch (Model: WMRMW4300K-PCAP)
43" Rack Mount UHD 4K (3840 x 2160) Display, 500nits, Contrast Ratio 4000:1, 89/89/89/89, VGA+DVI+HDMI Input with PCAP Multi Touch
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
Features: |
|
| DISPLAY | |||
| Resolution | 3840x2160 | Size | 42.5 inches |
| Contrast Ratio | 4000:1 | Panel Brightness | 500nits |
| Display Color | 1.07G Colors | View Angles | 89,89,89,89 |
| Touch / Glass | Projected Capacitive Multi Touch Screen PCAP with With ITO Flim (Optional) |
Active Area | 941.184 x 529.416 mm |
| ENVIRONMENT | |||
| Operating Humidity | 10% to 95% RH | Operating Temperature | 0~50°C |
| Storage Temperature | -10°C~60°C | ||
| CERTIFICATION | |||
| Certification | MILSTD 461F, MILSTD 810G, FCC, CE | ||
| MIL-STD 461E/F | RE101 / RE102 CE101 / CE 101 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
MIL-STD 810F/G | Vibration Method 514.5 Humidity Method 507.4 Transit Drop Method516.5 |
| IO PORTS | |||
| Serial Port | 1 x RS232 for Remote Control (Optional) | Video | 1 x VGA 1 x DVI 1 x Display Port 1.2 1 x HDMI 1.4 (Optional) 1 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Line In (Optional) | USB Port | 1 x USB for Touch Screen |
| MECHANICAL | |||
| Dimension | 1088.2 x 681.4 x 84.6 mm | Mounting | VESA Mount/ Rack Mount |
| Enclosure | Metal | Cooling System | Fanless Design |
| Accessory | 1 x User Manual(Hardcopy) 1 x Power Cord MIL DTL 38999/1 1 x VGA Cable 1 x DVI Cable 2 x HDMI Cable 1 x DP Cable 1x USB Cable |
Optional Accessories | 1 x Audio cable |
| POWER | |||
| Power Rating | AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional) |
||
| CONTROL | |||
| Button | 5 x Capacitive Touch Key, Power, Brightness+, Brightness-, OSD/ Enter, ESC | ||
