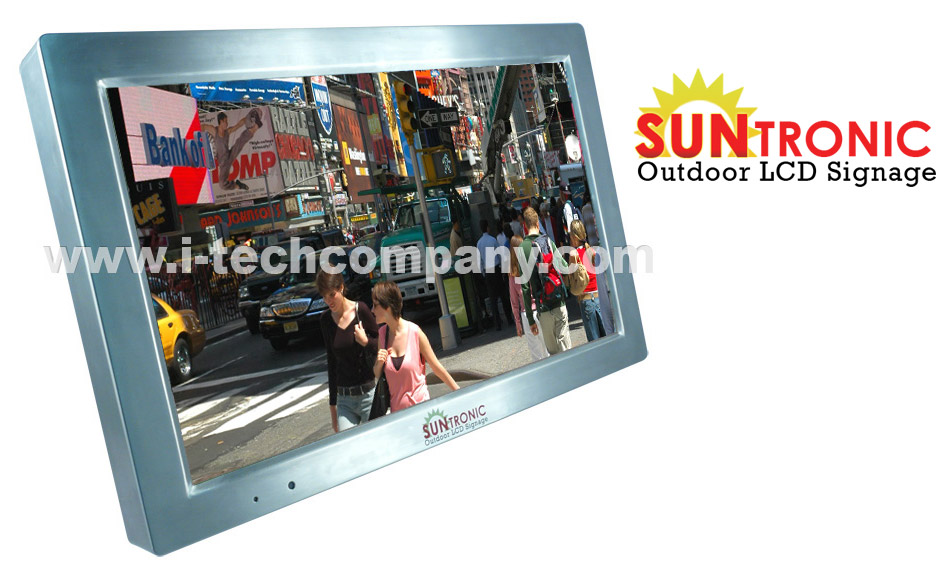

52" Large Screen Digital Signage Monitor High Bright LED Enhanced Sunlight Readable Display, 1100 Nits (Model: U5200L)

52" Large Screen Digital Signage Monitor High Bright LED Enhanced Sunlight Readable Display, 1100 Nits (Model: U5200L)
  • Front View
  • Back View
  • Side View
  • Accessories

52" Large Screen Digital Signage Monitor High Bright LED Enhanced Sunlight Readable Display, 1100 Nits (Model: U5200L)

52inch-large-screen-digital-signage-monitor-high-bright-led-u5200
  • Overview
  • Download
Product discontinues. Contact us at Info@iTechLCD.com for replacement item.





Features:
  • Bright Active Matrix TFT-LCD Display
  • 1920 x 1080 RGB Max. Resolution
  • Digital or Analog Interface
  • Completely Sunlight Viewable
  • Multiple Video Input Selections

Specifications:
LCD panel 52” TFT-LCD
Display Size 1152 x 648 mm, (52.037 inch)
Resolution 1920 x 1080 RGB
Color 16.7 M
Pixel Pitch

0.2 (H) x 0.2 (V) mm

Horizontal Freq. 60KHz ~ 80KHz
Vertical Freq. 50Hz /60Hz frame rate
Brightness 1100 cd/m2, LED Array backlight enhanced
High Contrast 1500 : 1  Dynamic contrast ratio: 10000:1
Dimming range: Auto dimming by light sensor
Viewing Angle 88/88/88/88
Color Gamut 72% NTSC
Response Time 6.5ms
Interface VGA (round connector IP66), DVI or HDMI
Video System PAL/SECAM/NTSC-3.58, NTSC-4.43, PAL-60
Video In S-Video (round connector IP66)
Remote control Support for full OSD features
Operate Voltage AC 100 ~ 240V 60/50Hz
Power Consumption 750 Watt for complete monitor, additional 160 Watt for optional Heater
Stand by mode

15 W or less

Enclosure

IP54 Stainless Steel Enclosures

Protection

4--6mm Vandal glass at the front

Accessories

AC Power Cord, IR Remote Control
VGA cable x 1, S-Video cable x 1

Environmental Operating temperature 5F ~ 110F
(Optional add heater reach to -22F)
Operating Humidity 10% ~ 85%
Storage temperature -20 ~ 60C
Storage Humidity 5% ~ 95%
