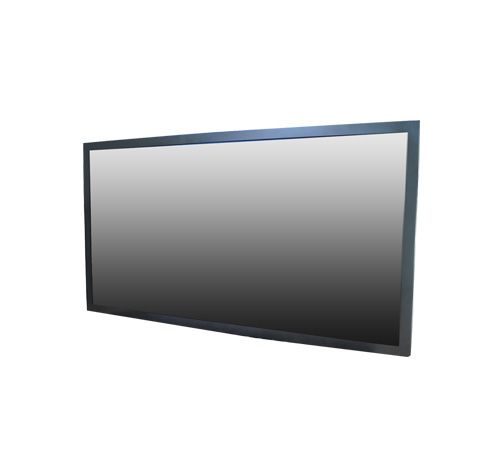

55" IP65/NEMA 4 IP65 Tempered AR Glass Front LCD Monitor w/ VGA, DVI, HDMI, Rear OSD (Model: CCHW5500-125V)
Front Water and Dust Proof IP65/NEMA 4 with IP65 Tempered AR Glass Front with Solid Back Housing except I/O 55" Wide LCD Monitor, 1920x1080, 450nits VGA + DVI + HDMI Input, Rear OSD, VESA Mounting
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The CCHW5500-125V from I-Tech is a 55-inch IP65 NEMA 4-rated LCD monitor, purpose-built for industrial and outdoor environments. Its rugged tempered AR glass front provides exceptional durability and glare reduction, ensuring excellent performance in any lighting condition. With its high brightness display, this monitor is designed for superior visibility, even in direct sunlight, making it perfect for outdoor digital signage, transportation centers, and industrial applications. Its weatherproof design ensures reliable operation in the most demanding environments. |
Features: |
|
| Display | Viewing Size Image | 55" |
| Active Display Area (mm) | 1213 (H) x 684 (V) | |
| Pixel Pitch (mm) | 0.21(H)x 0.63(V) | |
| Resolution | 1920 x 1080 | |
| Contrast Ratio | 4000:1(typ.) | |
| Color | 1073.7M (10bits/color) | |
| Viewing Angle | -89~89 (H) ; -89~89 (V) | |
| Brightness | 450 cd/m2 | |
| Recommended Resolution | 1920 x 1080 @ 60Hz | |
| Signal Connector | VGA,DVI, HDMI | |
| Power | Source | 125VDC with Terminal Block |
| Consumption | 170W typical, normal operation | |
| Management | VESA DPMS Compliant | |
| Optional | Touch | Resistive, PCAP ,IR |
| High Brightness | 1000,1500 | |
| Auto Dimming | YES | |
| POWER in | DC24V | |
| Remote Control | YES | |
IO |
Video: VGA + DVI | |
| Power: 12 VDC External power supply 100-240 VAC 50-60Hz included |
