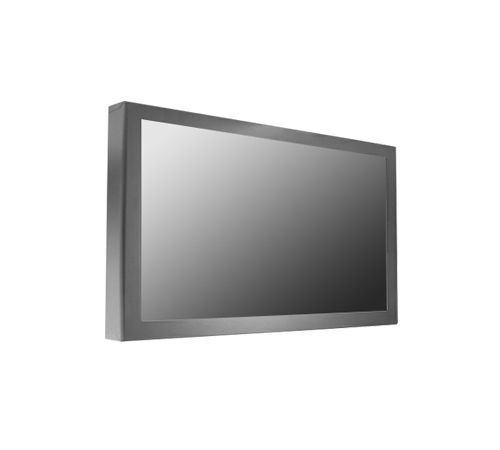

55" Military Grade Chassis LCD Monitor 350nits, Intel i5-1135G7, Fanless, PCAP Touch, MIL-STD-461/810F (Model: EMilW5500-i5)

Military Grade, Chassis 55" LCD monitor, 1920x1080, LED-350nits, AC-IN w/ Built-in PWR 230 VAC Intel H510 system chipset for 11 Gen.i5-1135G7 CPU (8M Cache, 420 GHz, 4C/8T, 10nm, 35W) installed, Fanless solution

Military Grade, Chassis 55" LCD monitor, 1920x1080, LED-350nits, AC-IN w/ Built-in PWR 230 VAC Intel H510 system chipset for 11 Gen.i5-1135G7 CPU (8M Cache, 420 GHz, 4C/8T, 10nm, 35W) installed, Fanless solution

Inquiry/Quote Request
EMilW5500-i5
  • Overview
  • Specifications
  • Download
The iTech 55-inch military-grade chassis LCD monitor is engineered for tough environments, delivering 1920x1080 resolution, 350 nits brightness, and powered by Intel's i5-1135G7 processor. Built with a fanless design and compliant with MIL-STD-461 and MIL-STD-810F standards, it ensures durability and reliability under extreme conditions. Ideal for military and industrial applications, this display combines performance with rugged construction.


Features:
  • Mechanical design is modularized, offering flexibility in product configuration and facilitating easy maintenance.
  • An optional built-in touch screen enhances interactive applications.
  • Intel 11 Gen. i5 processors
  • Intel H510
  • Support DDR4-3200 MHz, Max up to 64GB
  • 2x HDMI, 6x USB 3.0, 2x LAN, 1x Line-out
  • Intel I225-V GBE LAN Chip (RJ45, 10/100/1000 Mbps)
  • Security support TPM 2.0 onboard IC
  • Compliance: MIL-STD-461 / MIL-STD-810F(Vibration /Shock)
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio Wide
Size 55" viewable diagonal area
Active Area 1209.6(H) x 680.4(V) mm
Pixel Pitch 0.63(H) x 0.63(V) mm
Native Resolution 1920(H) x 1080(V)
Colors 16.7 M
Brightness 350
Contrast 3000 : 1
Response Time ≤ 8 ms (G-to-G)
Viewing Angle (typical) H. 178°(- 89°~ + 89°) , V. 178°(- 89°~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Power
Power Input Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption 205 watt , < 1 watt

System
CPU Intel 8th Gen. Core i5
BIOS UEFI
System / Graphic Chipset Intel H510
System Memory 32GB RAM
HDD 512GB SSD
I/O port 2xHDMI 6xUSB3.0 2xLAN 1xLine-out
Expansion 1 x Mini PCI-e
Dimensions
Physical Please refer to Drawing
Carton W x H x D = TBD
Operating Condition
Temperature / Humidity -20°C ~ 40°C, 10% ~ 90% (no condensation)


Option MIL:
  • Environmental: MIL-STD-810, DO-160
  • EMI/EMC: MIL-STD-461/462
  • Panel construction & lighting: MIL-P-7788
  • Power: MIL-STD-704, MIL-STD-1275
  • Shock – MIL S 901D
  • Vibration – MIL STD 167
