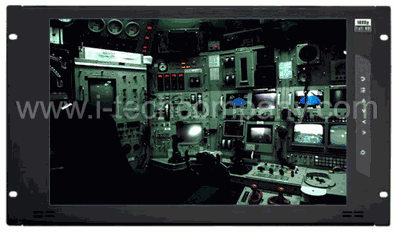

6U Wide 17" TFT SAMSUNG LCD Rackmount Monitor Flat Panel 1920 x 1080 withVGA + DVI-D + HDMI (Model: NPW617HDAV)

6U Wide 17" TFT SAMSUNG LCD Rackmount Monitor Flat Panel 1920 x 1080 withVGA + DVI-D + HDMI w/ speaker + BNC + S-Video + Audio

Overview
Download

LCD Drawer Benefits:

6U rackmount 17" widescreen LCD
Support Full HD with 1080p resolution
1.07 Billion true colors, 10-bit
PIP & Picture by Picture viewing efficiency
Green LED-backlit panel technology
Ideal for CCTV security & industrial control

Options:

3G/HD/SD-SDI Broadcast-grade input
MCS Multi-display control solution
F17" Touchscreen : Resistive
S-Video + Composite ( BNC ) or Audio input
48V, 24V or 12VDC power

Basic I/O: DVI-D + VGA + HDMI w/ speaker
AV3.0 upgrade: DVI-D + VGA + HDMI + BNC + S-Video + audio
Options: SDI, USB for touchscreen & DC power

Diagram (mm):

Specifications:

LCD Panel
Diagonal size	17.3" widescreen TFT
Max. Resolution	1920 x 1080
Brightness (cd/m2)	300
Backlight	LED
Colors	1.07 Billion, 10-bit
Contrast Ratio (typ)	600 : 1
Viewing Angle (H/V)	178° x 178°
Active area (mm)	382 x 215
MTBF (hrs)	20,000
Signal input	VGA, DVI-D and HDMI
Sound	2 x 2W Power
Weight
Net	4.5 kgs / 9.9 lbs
Gross	6 kgs / 13.2 lbs
Environmental
Operating	0 to 50°C Degree
Storage	-5 to 60°C Degree
Relative humidity	5~90%, non-condensing
Shock	10G acceleration ( 11 ms duration )
Vibration	5~500Hz 1G RMS random vibration
Casing Color	Black front panel ( RAL 9005 ) Dark grey rear case ( RAL 7037 )
Regulatory	FCC, CE, RoHS
Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption	Max. 48 Watt, Standby 5 Watt
Dimensions
Product	480 x 48 x 266 mm / 18.9 x 1.9 x 10.5 inch
Packing	529 x 124 x 451 mm / 20.8 x 4.9 x 17.8 inch

Top

Optional : 3G / HD / SD-SDI input

	ITech' SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with NetView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, ITech provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.

Optional : MCS ( Multi-display Control )

	More control is always good. Especially when it is necessary and easy. ITech provides MCS solution to control the OSD of various NetView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi rst display via a 15 feet serial cable while the CAN bus is used for the various LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with NetView LCD displays, ITech provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty.

Options : Touchscreen & driver

Model Technology Touch Point Method Activation Force Durability Response Time Optical Transmittance Surface Hardness Haze Glass Connector Compatibility	TRB e-Resistive	TCB e-Capacitive
	5-Wire Resistive	Capacitive
	Single	Single
	Stylus or Finger	Finger
	< 50g / Stylus=R0.8	< 50g
	10 million touches	300 million touches
	15 ms	20 ms
	80% ± 3%	87% ±2%
	3H	9H
	8% ± 3%	7%
	3.2 ±0.2 mm	2.8 mm ±10%
	USB Type A
	Windows 7 / XP / Vista, Linux

USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
For detailed information, please refer to the attached CD disc
As the touchscreen unit is not made of toughened glass, please handle it carefully

Options : MIL-type or Lockable Connector

	Input	Part no.	MIL Standard
MIL - type Connector	DC Power *** ( Male )	MS3470W8-33P	MIL - DTL - 26482
MIL - type Connector	VGA *** ( Male )	MS3470W14-15P	MIL - DTL - 26482

There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design flexibility possible. For more information, please contact us.

	Input Part no. Standard
Lockable Connector	DC Power ( Male )	YM-Ext-461CP001	D-type 3W3
Lockable Connector	USB	LUSB - A111 - 00	-

MIL - type or Lockable connectors above can be integrated with our LCD displays. Sale service just for connectors not provided.
