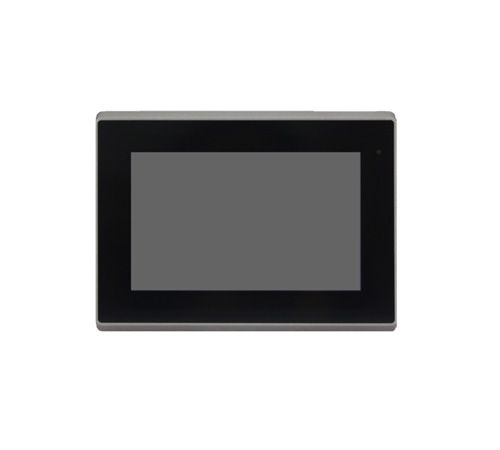

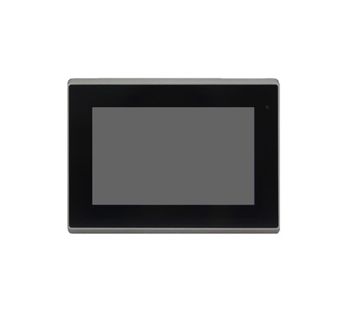

7" Fanless Rugged HMI Barebone Touch Panel PC w/ Intel Celeron, Resistive Touch, 9~36VDC (Model: BBC0700J-HB)

7" WVGA Fanless HMI Barebone with Intel Celeron J6412 (2.0 GHz) CPU, 1x DDR4 Slot, Resistive Touch screen, 9~36VDC Input with Adapter, Aluminum Chassis.

7" WVGA Fanless HMI Barebone with Intel Celeron J6412 (2.0 GHz) CPU, 1x DDR4 Slot, Resistive Touch screen, 9~36VDC Input with Adapter, Aluminum Chassis.

Inquiry/Quote Request
BBC0700J-HB
  • Overview
  • Specifications
  • Download
The 7-Inch Fanless Rugged HMI Barebone Touch Panel PC (Model BBC0700J-HB) is engineered for industrial environments where reliability and durability are paramount. This compact yet powerful HMI (Human-Machine Interface) system features a fanless design, ensuring silent operation and resistance to dust and debris. Its rugged construction makes it ideal for challenging applications such as industrial automation, control systems, and monitoring tasks. Built to perform under pressure, the BBC0700J-HB combines efficiency, durability, and user-friendly functionality in one compact device.


Features:
  • 7" Industrial Compact Size Panel PC
  • Flat Front Panel Touch Screen with IP66 Front Bezel
  • Intel Celeron J6412 Processor
  • 4GB DDR4 2133/2400/2666/3200 SO-DIMM
  • Support TPM2.0 Hardware Security
  • DC 9~36V Wide Range Power Input
  • High Brightness 1,000nits
  • M.2/128G/3D TLC/SATA3/2242/B Key/-20~75 DEGREE
  • Windows 10 IoT Enterprise 2021 LTSC Entry PKEA
SYSTEM
CPU Intel Celeron J6412 Processor (2.0 GHz, 1.5MB L2 cache)
System Chipset Memory SoC
Memory 4GB DDR4 2133/2400/2666/3200 SO-DIMM
TPM TPM 2.0
I/O PORT
USB 2 x USB 3.2 Gen2 type A
2 x USB 2.0 type A
Serial / Parallel 1 x RS-232/422/485 (Default RS-232; select via BIOS)
Audio 1 x Line-out
LAN 2 x 2.5GbE LAN RJ-45 (I226)
DP 1 x DP, support DP++
  Power 1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector
Option VESA Stand
4G LTE/Wi-Fi/Bluetooth
STORAGE SPACE
Storage M.2/128G/3D TLC/SATA3/2242/B Key/-20~75 DEGREE
EXPANSION
Onboard Expansion Bus 1 x Mini-PCIe slot (full size)
1 x M.2 E-key
1 x Nano SIM Card holder

DISPLAY HIGH BRIGHTNESS
Display Type 7" TFT-LCD
Max. Resolution 800 x 480
Max. Color 262K
Luminance (cd/m2) 1000
View Angle 160(H) / 160(V)
Contrast 1000:1
Backlight Lifetime 40,000 hrs

Touch Screen
Type Resistive Touch
Interface USB
Light Transmission(%) Resistive Touch: 80%
Power
Power Input DC 9~36V
Power Consumption 30W

Mechanical
Construction Aluminum Die-casting Chassis
Mounting Panel Mount, VESA 75 x 75
Dimensions (WxHxD) 202mm x 149mm x 40mm
IP Rating IP66 Compliant Front Bezel
Net Weight 1.1kg
Environmental
Operating Temperature -20~60˚C
Storage Temperature -30~70˚C
Storage Humidity 10 to 90%@ 40˚C, non-condensing
Certificate CE/FCC class B/UL
Operating System
Windows 10 IoT Enterprise 2021 LTSC Entry PKEA
