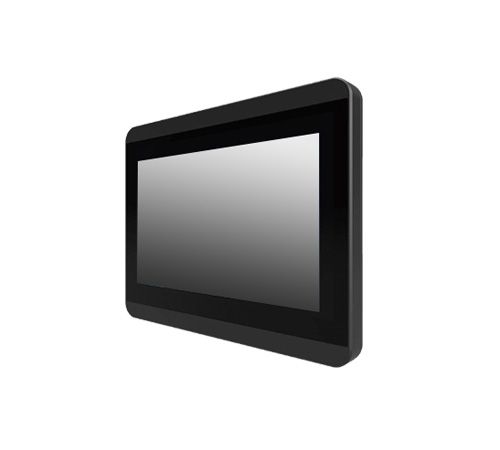

7" 1000nits Front IP65 Wide PCAP Touch Chassis Display w/ VGA Input, 12V DC-in, No Speakers (Model: WRDW0700HB-V2)
Front IP65 Wide 7" PCAP Touch Chassis Display, Open Frame 1024x600 Resolution, 1000nits with VGA Input, VESA Mount/Panel Mount, 12V DC in, No Speakers
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The 7-inch Front IP65 Wide PCAP Touch Chassis Display (WRDW0700HB-V2) is designed for demanding environments where durability and performance are essential. Featuring a high-brightness screen for sunlight readability, PCAP touch technology for precise interactivity, and IP65-rated front protection, this display is ideal for outdoor, industrial, and rugged applications. Its versatile design supports VESA mounting, ensuring easy integration into various setups. With optional features like extended temperature operation and solar radiation protection, it’s built to thrive in extreme conditions. |
Features |
|
| Display | |||
| Resolution | 1024x600 | Size | 24 inches |
| Contrast Ratio | 700:1 | Panel Brightness | 1000 nits |
| Display Color | 16..7M Colors | Active Area | 75,75,75,70 |
| Active Area | 153.6x90 mm | Touch / Glass | Projected Capacitive Multi Touch Screen |
| Environment | |||
| Operating Humidity | 10% to 90% RH, Non-Condensing | Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C | IP rating | Front IP65 |
| Certification | |||
| Certification | CE, FCC | ||
| I/O Ports | |||
| USB Port | 1 x USB for Touch Screen | Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
| Audio | 1 x Speaker (Optional) | ||
| Mechanical | |||
| Dimension | 189 x 145.4 x 47.8 mm | Mounting | VESA Mount/Panel Mount |
| Enclosure | Metal | Cooling System | Fanless Design |
| Accessories | |||
| Accessories | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
Optional Accessories | Remote Controller (Optional, Varies by product) |
| Power | |||
| Power Rating | 12V DC in | ||
| Control | |||
| Button | 5 Keys: , + , Power , Esc , Enter | ||
