7" Military Grade Panel PC, 1000nits, Intel i3, 16GB, 250GB SSD w/ Resistive Touch, Windows 11 (Model: Nmil-CHW0700-i3-HB)
7" Military Grade Panel PC, 1024x600, 1000nits, Intel i3-1115G4E, 16GB, 250GB SSD with 5-Wired Resistive Touch, Windows 11 Professional, 64-bit
X
Inquiry/Quote Request
- Overview
- Specifications
- Download

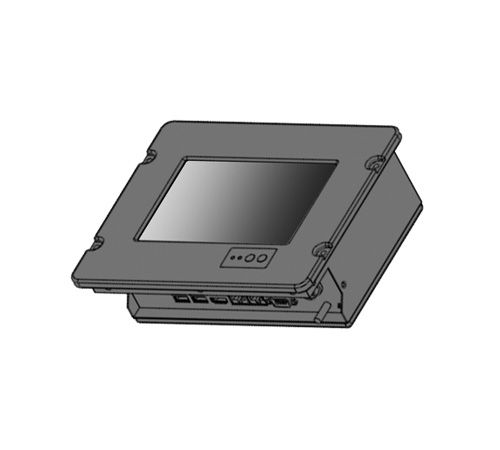

The 7-inch Military-Grade Panel PC (NMIL-CHW0700-i3-HB) is built for extreme durability and performance in harsh environments. Powered by an Intel i3 processor, this rugged panel PC offers high brightness and features an IP65-rated front panel, making it ideal for military and industrial applications. Designed to withstand tough conditions, it ensures reliable operation in demanding environments where standard PCs might fail. With its compact size and robust construction, this panel PC is perfect for use in mission-critical applications requiring high-performance computing in compact spaces.
| Mechanical | Front Bezel | Military grade 64430 Aluminum Alloy with anti-corrosion treatment |
| Chassis | Heavy-duty galvanized steel with anti-corrosion treatment | |
| Color | Semi-gloss black | |
| Fanless Design | Fanless Design | Yes, 100% fanless design |
| Cooling Method | Air conduction through large heatsink | |
| Mount | Front Mount | Support Front mount, flush mount |
| VESA Mount | Support VESA-100 Mount | |
| LCD Module | LCD Size | 7" |
| Resolution | 1024 x 600 | |
| Brightness | 1000 cd/m2 | |
| Contrast Ratio | 500 : 1 | |
| Viewing Angle | 70 / 75 / 75 / 75 | |
| No. of Color | 16.7 M | |
| Touch | Touch Type | 5-Wire Resistive Touch |
| Touch Interface | USB | |
| Touch Device | Finger, Glove, Stylus, etc. | |
| Processor | CPU Generation | Intel latest 11th Gen. i3-1115G4E 2.2GHz |
| Cache Memory | 16MB L3 Cache Memory | |
| Graphics | Graphics Engine | Intel Iris Xe high speed GPU |
| Direct X | 12.1 | |
| Open GL | 4.6 | |
| Open CL | 3.0 | |
| System RAM | RAM | 16GB DDR4 3200MHz high speed RAM |
| RAM Type | SO-DIMM Type RAM | |
| Expansion | Expandable up to 64GB | |
| Storage | SSD | 250GB M.2 2280 NVMe ultra fast SSD |
| SSD Interface | M.2 2280 | |
| Expandable | 500G, 1TB, 2TB etc. | |
| I/O Port | LAN | 2 x 10/100/1000 Base-T Ethernet |
| USB | 4 x USB3.2 ultra fast USB | |
| Video out | 2 x HDMI ports | |
| Serial (COM) Port | 5 x Configurable RS232/422/485 ports | |
| DC | 1 x DC with Mil. Circular connector | |
| Power Supply | Power Input | DC9~48V Ultra Wide input |
| Polarity Reverse | Polarity reverse protected, auto recovery | |
| Power Consumption | Around 20W | |
| Dimensions | Exclude Bezel | 234 (W) x 186 (H) x 84 (D) mm |
| Include Bezel | 234 (W) x 186 (H) x 92 (D) mm | |
| Operating System | Operating System | Windows 10, 11 Pro., RHEL, Linux etc. |
| Environmental | Operating Temperature | 0 to +50 degree C |
| Storage Temperature | -20 to +70 degree C | |
| Humidity | 5% ~ 95% R.H. @40 C, non condense | |
| Salt Fog | MIL-STD-810 Compliant | |
| Shock | MIL-STD-810 compliant | |
| Vibration | MIL-STD-810 compliant |
