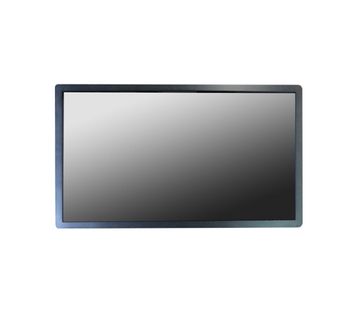

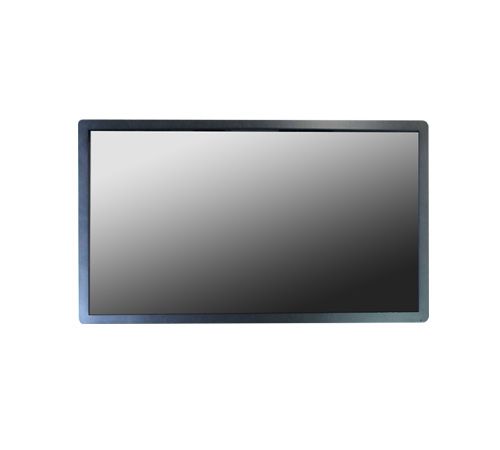

75" All in one PC Display Chassis Mount, GiGAIPC iTXL-5105A, Celeron N5105, 8G RAM, 480GB SSD (Model: BCPCW7500HD-XL)

All in one PC Widescreen Display Chassis Mount 75" LCD Monitor, 1920x1080, 380nits, GIGABYTE Mother Board - GiGAIPC iTXL-5105A, Celeron N5105 Processor up to 2.9GHz, 8G DDR4 2666M hz, SSD 480GB of storage.

All in one PC Widescreen Display Chassis Mount 75" LCD Monitor, 1920x1080, 380nits, GIGABYTE Mother Board - GiGAIPC iTXL-5105A, Celeron N5105 Processor up to 2.9GHz, 8G DDR4 2666M hz, SSD 480GB of storage.

Inquiry/Quote Request
BCPCW7500HD-XL
  • Overview
  • Specifications
  • Download
Introducing the 75-inch All-in-One PC Display with chassis mount, model BCPCW7500HD-XL, from I-Tech Company. Designed for both industrial and commercial applications, this high-definition display delivers exceptional performance and reliability. Its robust design ensures seamless integration into various environments, making it the ideal solution for those seeking a large, high-quality display with integrated computing capabilities. Whether for digital signage, control rooms, or interactive kiosks, the BCPCW7500HD-XL offers unparalleled clarity and functionality.
LCD SPECIFICATIONS
Viewable Size Image 75"(16:9)
Active Display Area(mm) 1674.7(H) x 953.6(V)
Number of Pixels 1920 x 1080
Contrast Ratio 1200 : 1
Display Color 10 Bits + 120Hz
Brightness(cd/m) 380 Nits
Viewing Angle R/L178° x U/D178°
Recommended Resolution 1920 x 1080
Response time 12 ms
Life time 30,000 to 50000 /hr
Signal Input 2 x HDMI +1x DP +1x USB or More

SYSTEM SPECIFICATIONS
CPU Intel Core Celeron N 5105
RAM DDR4 Sodimm 8G
Storage 480GB  SSD
USB Port 4 x USB 3.0 Port+ 4 USB 2.0
PC Audio output Realtek ALC897 audio codec
Speaker Output 2 x 5 w internal speaker
LAN Port 2 x RJ-45 10/100/1000 (Mbit)
WIFI IEEE 802.11b/g/n (option)
Touch Screen Infrared Touch 20 finger points

MECHANICAL
Operating Temp. 0°~50°C
Humidity 20~80% RH
Store Temp. -20°~55°C
Dimensions(mm) 1758(L)x1037(W)x 123 (D)
Wall Mount(LxW/mm) 1000(L) x 200(W)
Color Black

ACCESSORIES
HDMI TO HDMI x 1
Flexible wall mount kits x 1
I/O Empty cover and Power Core x 1

POWER
Power Input 100V/240V AC (50/60HZ)
Power Consumption 235W +/- 10 W

INFRATED TOUCH (Options)
Windows 11 and MAC OS X, Linux, Android etc.
Support panels of flat type for LCD.
Touch Points 10, 20  points touch. (Options)
Operating Temp. -20°C ~ 60°C.
Operating Hum. 10%~90% RH
Storage Temp. -40°C ~ 85°C
Touch Activation Force No pressure required.
Touch Accuracy ± 2mm on more than 95% touch area.
Response time First click<16ms, Repeated click<6ms.
Light-proof Capacity Resisting lights from all angles
Input Method Fingers, stylus, gloves or any other opaque material medium.
Hohs’ hardness rating 7
Break Resistance 3mm Heat Tempered Glass.
Meets UL-1950 Steel Ball Drop Test.
Light Transmission >92%. (per ASTM D1003)
