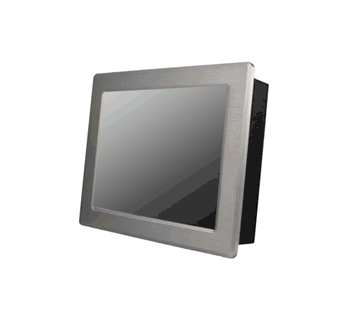

7" Wide Aluminum 6mm Panel mount, -30 to 65°C, 800x480, 1000nits LED / VGA + DVI + HDMI input / Rear OSD / 110/220V AC external adapter with Resistive Touch (Model: YPMW0700PHBWT-TR)
7" Wide Aluminum 6mm Panel mount, -30 to 65°C, 800x480, 1000nits LED / VGA + DVI + HDMI input / Rear OSD / 110/220V AC external adapter with Resistive Touch (Model: YPMW0700PHBWT-TR)
Main Feature
- High contrast color TFT-LCD Monitor support resolution up to 800*480.
- Power management system conforms to VESA DPMS and EPA Energy Star standards.
- Full consideration for touch screen installation and application.
- Universal Power adapter.
- Support DDC1 & DDC2B for Plug & Play compatibility.
- Advanced OSD control for picture quality adjustment.
- Detachable stand for wall-mounting adjustment.
- Heavy duty monitor with steel frame.
- Custom design by request.
YPMW0700PHBWT-TR
- Specifications
- Download
- Contact Sales
Panel Type |
7-inch TFT LCD |
Screen Diagonal |
7-inch |
Active Display Area (mm) |
152.40 (H) x 91.44 (V) |
Pixel Pitch (mm) |
0.1905 x 0.1905 |
Number of Pixels |
800 * 480 |
Contrast Ratio |
400:1 |
Color Arrangement |
R.G.B. Vertical Stripe |
Brightness (cd/m˛) |
1000 cd/m˛ |
Viewing Angle(Typ.) |
65/65/70/70 (R/L/U/D) |
Signal Connector |
15 PIN D-Sub |
Power Source |
AC100 ~ 240V, Universal +/- 10% |
Power Management |
VESA DPMS Compliant |
Temperature |
-30 ~ 85°C |
Plug & Play |
VESA DDC 1/2B |
