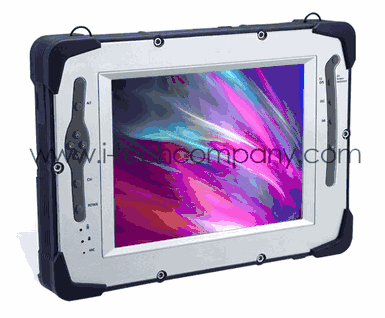

8.4" Tablet Rugged Mobile Sunlight Readable Computer, 800x600 res. 220nits w/ low reflective touch, Pentium M 1.1GHz CPU, 1GB Memory, 8GB SSD(No Recovery Program), Windows XP Pro English, Int. Bluetooth/Wireless LAN(w/ext. antenna & diploe)/GPS w/ext. antenna, include AC adapter/Lithium-Ion Rechargable Battery(3600mAH) (Model: STRC840-PM-8CF-XPP)
8.4" Tablet Rugged Mobile Sunlight Readable Computer, 800x600 res. 220nits w/ low reflective touch, Pentium M 1.1GHz CPU, 1GB Memory, 8GB SSD(No Recovery Program), Windows XP Pro English, Int. Bluetooth/Wireless LAN(w/ext. antenna & diploe)/GPS w/ext. antenna, include AC adapter/Lithium-Ion Rechargable Battery(3600mAH) (Model: STRC840-PM-8CF-XPP)
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| - Highly rugged housing with protective rubber for the most demanding environments - 8.4" Sunlight readable Touch Screen - Vehicle or desktop docking station capability - Advanced enterprise integration with Win 2000,Win XP HE, Win XP Pro, Win XP Embedded+4GB Flash Memory for ultra tough environments - Lightweight Tablet PC for mobility - FirstWare Recover Pro License from Phoenix for Factory and User Defined Recovery on HDD> |
| Features: |
|
Physical and Environmental Characteristics
Performance Characterestics
Network Characterestics
Regulatory Approvals
Power Supply
Optional Accessories
| Dimensions | 10.75ˇ± W x 7.76ˇ±H x1.66ˇ±D (273mmW x 197mmH x 42mmD) | ||
| Display Diagonal | 8.4ˇ± (213 mm)diagonal,6.75ˇ±Wx5.0ˇ±H(171 mmWx127 mmH) | ||
| Weight | 1.75Kg (3.85 Lb) | ||
| Operating Temperature | -4ˇĆ F to + 122ˇĆ F (-20ˇĆ C to + 50ˇĆ C) | ||
| Storage Temperature | -22ˇĆ F to +140ˇĆ F (-30ˇĆ C to +60ˇĆ C) | ||
| Humidity | 5% - 95% non-condensing | ||
| Fan | STRFC840-C | STRC840-CM | STRC840-PM |
| Fanless | Integrated cooling fan (0.98``x0.98``, 25mmx25mm) - User may elect to easily disable fan for special operating environments through BIOS settings. | ||
Performance Characterestics
| Processor | STRFC840-C | STRC840-CM | STRC840-PM |
| Transmeta Crusoe 5800(800MHz) | Intel Celeron M 1GHz | Intel Pentium M 1.1GHz | |
| System Memory | 256MB DDR RAM up to 512MB(Option) | 1GB DDR RAM | |
| Operation System | Windows XP, XP Embedded | ||
| Display | SVGA (800 x 600) 262K Color TFT LCD with resistive touch panel | ||
| Display Brightness | 220NIT with optional Low Reflective Touch panel (Sunlight Readable) | ||
| Application Development | FirstWare Recover Pro License from Phoenix for Factory and User Defined Recovery on HDD |
||
| System Recovery | Standard desktop application development tools | ||
| System Expansion | 1 Compact Flash Type II Slot (external access) 1 PC Card Slot Type II (external access) |
||
| Hard Drives | 2.5ˇ± 40G Hard Disk or higher(Internal, Removable), IDE interface Compact Flash card (with Windows XP Embedded) |
||
| LED | One two-color LED for alarm notification : charger indicator / active HDD indicator | ||
| Audio | Stereo Line-IN /OUT, Internal Mono speaker / Microphone | ||
| Other I/O | PS/2 Keyboard, VGA, Serial, LAN | ||
| USB | Two USB ports, support USB 1.0A | Two USB ports, support USB2.0 | |
| DeskTop Cradle, Vehicle Cradle I/O | PS/2 Keyboard, USB 1.0A, Power Jack, RJ-45 Ethernet LAN | ||
| Accessories | Stylus Pen, AC/DC Adapter/Charger, Handstrap, shoulderstrap | ||
Network Characterestics
| Wireless | IEEE 802.11b/g (11-54 Mbps) , Bluetooth (Class II): optional |
| Remote Modem (WAN) | CDMA1-X1 (Class B) or GPRS(GSM) through PC Card Slot - Local purchase recommended |
| GPS | Global Positioning System (optional, integrated) |
Regulatory Approvals
| Regulatory Approvals | STRFC840-C | STRC840-CM | STRC840-PM |
| FCC Class B, CE, MIC |
RoHS compliant/ FCC Class B, CE, MIC Vibration: MIL-STD-810F_514.5, IEC 60068-2-6, IEC 60068-2-6 Drop (testing): IEC 60068-2-32 Shock (testing): IEC 60068-2-27: Non operation, 50g Half sine |
||
Power Supply
| Power and Battery System | 3600mAH Li-Ion removable battery (3 operation and 5 standby mode hours)*, 6000mAH ( 4 operation and 7 standby mode hours)* Optional battery, Power Adapter with 110V~240V ac * Operation and Standby hours may depend on applications. |
Optional Accessories
| Desktop Cradle, Vehicle Cradle (with Keylock option), Protective Carrying Case, 3 Pack External Battery Charger, External Antenna for wireless LAN, DC/DC Cigarjack Adapter: Input 12V, Output 19V, 70W DC/DC Converter (External) : Input 18~54V, Output 19V, 75W |
