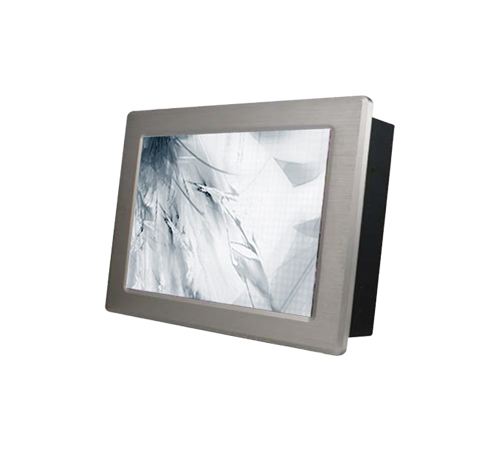

8.4" 1000nits IP65/NEMA4 Panel Mount w/ VGA+DVI+HDMI Input & External Auto Dimming Sensor (Model: YPM0840PWTHB-S)
IP65/NEMA4 Panel Mount (Aluminum-6mm) 8.4" Panel Mount 6mm Front Aluminum Bezel 800x600, 1000nits LED, Front IP65 VGA+DVI+HDMI Signal Input, AR Coating Glass, -20 to 70C, External Auto Dimming Sensor
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| IP65 NEMA4 Panel Mount LCD monitor is a durable and rugged display screen that is designed for use in harsh industrial environments where protection against water, dust, and other environmental factors is essential. The monitor is completely dust-tight and protected against jets of water from any angle. |
Features: |
|
| Panel Type | 8.4-inch TFT LCD |
| Screen Diagonal | 8.4-inch |
| Active Display Area (mm) | 170.4 (H) x 127.8 (V) |
| Pixel Pitch (mm) | 0.213 x 0.213 |
| Number of Pixels | 800 x 600 |
| Contrast Ratio | 600:1 |
| Color Arrangement | R.G.B. Vertical Stripe |
| Brightness (cd/m˛) | 1000 cd/m˛ |
| Viewing Angle(Typ.) | 80/80/80/60 (R/L/U/D) |
| Signal Connector | VGA + DVI + HDMI |
| Power Source | AC100 ~ 240V, Universal +/- 10% |
| Power Consumption | 2.16watts, normal operation |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | -20 ~ 70°C |
| Storage Temperature | -20 ~ 60°C |
| Plug & Play | VESA DDC 1/2B |
| Transparency | > 80% (typ.) |
| Hardness of surface | 3H |
| Linearity | ±1.5%(max.) |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
