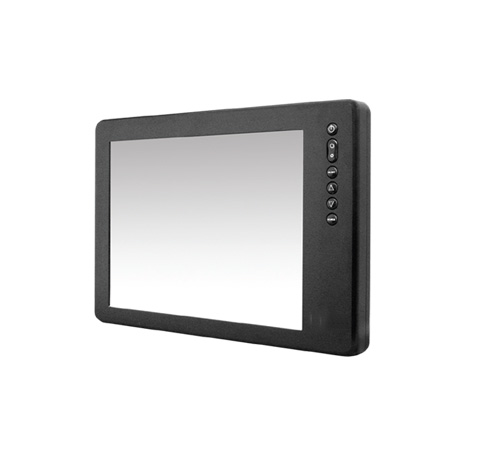

8.4" 800nits Rugged IP67 sealed High Brightness LCD w/ BNC input x3, 12/24 VDC, LED Backlight (Model: DOD8400BNC-H-F-01)

8.4" 800nits 800x600 Rugged IP67 sealed High Brightness LCD w/ BNC input x3, 12/24 VDC, LED Backlight

8.4" 800nits 800x600 Rugged IP67 sealed High Brightness LCD w/ BNC input x3, 12/24 VDC, LED Backlight

Inquiry/Quote Request
DOD8400BNC-H-F-01
  • Overview
  • Specifications
  • Download

Feartures:
  • BNC Inputs (3)
  • Composite Video; Auto Sensing NTSC, PAL Formats
  • Picture-In-Picture (PIP)
  • Sealed Connectors*
  • LED Backlight (3000:1 Dimming Ratio)
  • Anti-Reflective and Anti-Glare Treatments
  • Enhanced Sunlight Readability
  • IP67/NEMA 6 Enclosure
  • 8.4" TFT AMLCD
  • 10 ft. Power Cable Included


Optional Features:
  • External VAC 120/240 Power Supply
LCD SIZE Resolution Nits Viewing Angle Contrast Ratio Maximum Power Consumption
8.4" TFT AM LCD SVGA (800x600) 800 nits 160° (H) x 160° (V) 900:1 20 Watts
TECHNICAL SPECIFICATIONS
Display 8-bit color, 16,777,216 colors, TFT AMLCD (Thin-Film Transistor Active-Matrix Liquid-Crystal Display)
Dimming Ratio 3000:1
Video Inputs Composite Video (3), Auto Sensing NTSC and PAL-BGHID Formats
Connectors/Cable* JAE to Flying Leads DC Input
BNC Connector (3)
Housing Milled AL, Black Anodized, UV Clear Coat
Mount Options Standard: Panel or RAM; Optional Flush or 19” Rack, quoted individually.
Wide Range DC Power Input 10-36 VDC (12,24,28 VDC nominal)
Power Conditioning Protected against Internal Short Circuit, Load Dump, Over Voltage and Reverse Polarity
ENVIRONMENTAL SPECIFCATIONS
IP Rating IP67 (NEMA 6 Submersible)
Operating Temperature -20°C to 71°C (-4°F to 160°F); (-40°C (-40°F) with heater option)
Storage Temperature -51°C to 71°C (-60°F to 160°F)
Humidity 0-100%
Shock 50 G
Vibration 5.8 G (5-500 Hz)
Altitude 45,000 ft.
EMI Designed to meet FCC B, CE
