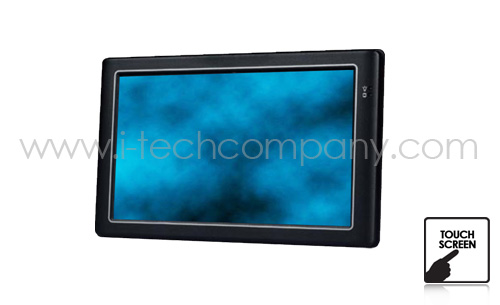

8.9" Vortex86DX 1GHz Panel PC Fanless and low power consumption w/512MB memory, with DC 8-35V input, DDR2/2USB/AUDIO/LAN/COM/CF/microSD with resistive touchscreen (Model: XPC0890DC)

8.9" Vortex86DX 1GHz Panel PC Fanless and low power consumption w/512MB memory, with DC 8-35V input, DDR2/2USB/AUDIO/LAN/COM/CF/microSD with resistive touchscreen (Model: XPC0890DC)

8.9" Vortex86DX 1GHz Panel PC Fanless and low power consumption w/512MB memory, with DC 8-35V input, DDR2/2USB/AUDIO/LAN/COM/CF/microSD with resistive touchscreen (Model: XPC0890DC)

Overview
Download

Features

8.9" TFT LCD with resistive touchscreen
DM&P Vortex86DX 1GHz onboard
512MB DDR2 system memory onboard
Compact Flash Type I/II / Micro SD Slot
Mini-PCI socket (Wi-Fi Optional)
Fanless and low power consumption
Metal chassis with compact design

Specifications

CPU	DM&P SoC CPU Vortex86DX-1GHz
Cache	L1:16KB I-Cache, 16KB D-Cache L2: 128KB Cache
BIOS	AMI BIOS
Memory	512MB DDR2 onboard
Watchdog Timer	Software programmable from 30.5u to 512 seconds x 2 sets
LAN	Integrated 10/100Mbps Ethernet
Audio (Optional)	CM119 Line-Out
Internal Drives	Compact Flash Type I/II slot Micro SD slot
I/O	RS-232/422/485 x 1 USB ports (Ver2.0) x 2
Expansion Slot	Mini-PCI socket x 1
Mechanical & Environment
Power	+5V DC +8 ~ +35V DC(Optional)
Power Consumption	+5V @ 1.3A
Operating Temperature	0 ~ +60 °C (+32 ~ +140 °F)
Storage Temperature	-20 ~ +70 °C (-4 ~ +158 °F)
Dimensions	236.6 x 146 x 35 mm (9.31 x 5.75 x 1.38 inches)
Weight	468g
Certification	CE, FCC, VCCI, Vibration, IP65 (Front Panel)

LCD Specifications
Display Type	8.9" TFT LCD
Backlight Unit	LED
Display Resolution	1024 (W) x 600 (H)
Brightness (cd/m2)	220 cd/m2
Contrast Ratio	500 : 1
Display Color	262,144
Dot Pitch (mm)	0.06 x 0.18
Viewing Angle	Vertical 110°, Horizontal 140°
Backlight Lifetime	25,000 hrs
Touchscreen
Type	Analog Resistive
Resolution	Continuous
Transmittance	80%
Controller	USB interface
Software Driver	DOS/Linux/WinCE/WinXP
Durability	1 million
