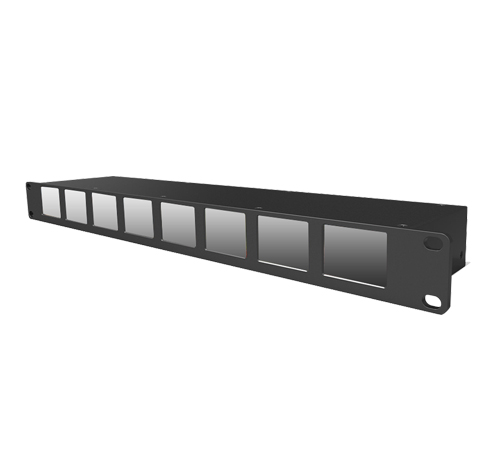

8x2" 1U Rack Monitor Metal Housing Panels 840x240 Resolution w/ DIP Switch Function. (Model: LMS-1820)
8x2" 1U Rack Monitor Metal Housing, Panels with 840x240 resolution, supporting up to 1920x1080, 250nits, 300:1, Input 8 x 3G-SDI, RS422, DC with DIP Switch Function
Main Feature
- 250cd/m˛ brightness, 300:1 contrast
- Input Ports: 8 x 3G-SDI, RS422, DC
- Output Ports: 8 x 3G-SDI loop
- Functions: 32 half-width characters UMD, time code, etc.
- DIP switch function
- Metal Housing, 1U Rack mount
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| DISPLAY | Display Screen | 8x2" 8bit TFT LCD |
| Physical Resolution | 640x240,supports up to 1920x1080 | |
| Aspect Ratio | 4:3 | |
| Brightness | 250cd/m2 | |
| Contrast | 300:1 | |
| Viewing Angle | 80°/70°(H / V) | |
| INPUT | 3G-SDI | 8 |
| RS422 | 1 | |
| OUTPUT | 3G-SDI | 8 |
| SDI FORMAT | SMPTE-125M | 480i(59.94) 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-292M | 1080p(30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) | |
| SMPTE-372M | 720p(60/59.94/50) 1080i(29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) |
|
| -Level A & Level B | 720p(60/59.94/50/30/29.97/25/24/23.98) | |
| ITU-R BT.656 | 576i(50) | |
| POWER | Current | 1500mA/15V |
| Input Voltage | DC 12-24V | |
| Power Consumption | ?23W | |
| ENVIRONMENT | Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C | |
| DIMENSION | Dimension(LWD) | 482.5x105x44mm |
| Weight | 1555g |
