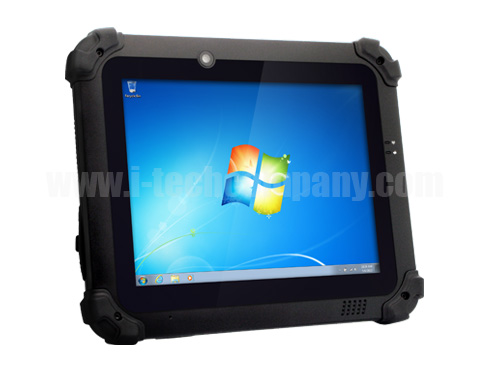

9.7" Wireless IP65-rated Tablet with Intel Core i7 processor, built-in 802.11 Wi-Fi, Bluetooth, capacitive touch display. OS: WIN 7 Pro, Storage: 256GB, RAM: 8GB (Model: DVM970HB-7i-W7-256-8)

Overview
Download

The DVM970HB-7i Rugged Tablet features the integration of a brilliant 9.7" capacitive touch screen as well as a high performance, energy efficient Intel® Core i7 processor within a slim, lightweight, durable package. With built-in smart card reader, Wi-Fi and Bluetooth modules as well as options for a barcode scanner, front and back cameras and 3G connection, this robust tablet offers seamless information capture and transmission for improved workflow. Rated IP65, MIL-STD-810G, and MIL-STD-461F as well as with on-screen keyboards and wide temperature range (-4°F to 122°F), the DVM970HB-7i provides reliable operation in harsh, mission-critical environments.

Features:

Intel® Core i7 dual core processor; high performance with low power consumption
Slim, lightweight and durable design
9.7” anti-reflection outdoor viewable screen with capacitive touch
Smart card reader (full-slot) and optional modules: barcode scanner, camera and 3G
IP65-rated for water and dust resistance
MIL-STD-810G for shock and vibration protection
MIL-STD-810G Explosive Atmosphere certified
MIL-STD-461F for EMI and EMC tolerance
NIST (National Institute of Standards and Technology) compliant
TPM (Trusted Platform Module) 1.2 support
Wi-Fi and Bluetooth 3.0+HS connection
Hot-swappable batteries and vehicle-mount charging option
Comprehensive remote device administration through server-based WebDT Device Manager software

Options

2 megapixel front camera and 5 megapixel back camera with LED flash, auto focus, white balance, gain control and exposure control
2D barcode scanner; reads 1D also
RFID reader; complies with HF 13.56MHz, ISO standard 15693, 14443A(B) & 18000-3 mode-1
Mobile Broadband; Gobi 3G module for HSPA+/EVDO/WCDMA/EDGE/GPRS/GSM

Specifications

System
CPU	Intel® Core i7, 1.7GHz
RAM	4GB to 8GB
Storage	32GB to 512GB Flash
Operating System	Microsoft® Windows® Embedded Standard 7, 7 Professional, 8.1 Pro Industry or Linux
Display	9.7” LED-backlight screen with capacitive touch; anti-reflection outdoor viewable
Display Resolution	1024 x 768
Network Interface	Wi-Fi 802.11a/b/g/n; Bluetooth 3.0+HS
Trusted Platform Module	TPM 1.2 support
Fan/ Fanless	fan
Control Switch and Button	1 power button, 3 side buttons, 1 trigger button and 1 Wi-Fi switch
Indicator	1 power/ battery status LED and 1 WLAN active LED
Microphone	Built-in Microphone
Speaker	Built-in speaker
SD Slot	1 full size SD card slot
NIST Compliant	Yes
I/O Ports
USB Port	1 eSATA USB hybrid port
Headset Jack	1
DC-in	1
Full Slot Smart Card Reader	Reads ISO 7816 T=0, T=1; 1.8/3/5V smart card

Mechanical and Environmental
AC/DC Adapter	Input: 100 -240V AC; Output: 19V DC, 3.42A
Battery Pack	Internal 14.8V, 1880mAh/ Optional: External 14.8V, 1850mAh
Stylus	Yes, non-electronic tip
Enclosure	ABS + PC plastics
Protective Bumpers	Rubber bumpers on each corner for handling protection
Dimensions (H x W x D)	8.7 x 10.4 x 1 in/ 220 x 263 x 25.4 mm
Weight	3.1lbs/ 1.4kgs
Vibration and Shock Resistance	MIL-STD-810G
Explosive Atmosphere	MIL-STD-810G 511.5 Procedure I
EMI and EMC tolerance	MIL-STD-461F
Water and Dust Resistance	IP65 * IP65 rating may not be applicable for units with module options
Regulatory	FCC Class B, CE, RoHS compliant
Temperature	Operation: 32°F to 104°F (0°C to 40°C); Govt/Military: -4°F to 122°F (-20°C to 50°C) Storage: -4°F to 140°F (-20°C to 60°C)
Humidity	0% -90% non-condensing
Major Options Spec
BARCODE SCANNER (2D)
Scan Rate	60 frame/ sec Linear (1D) emulation mode: 200 images per second, auto adaptive
Scan Angle	Tilt: 360°/ Pitch: ±45°/ Skew: ±65°
Optical Resolution	CMOS 844 x 640 pixels
Print Contrast	Down to 20%
RFID READER
Frequency	13.56MHz ±7KHz
Modulate Mode	FSK
Reading Range	Within 1.18inch (30mm)
Protocol	ISO standard 15693, 14443A(B) & 18000-3 mode-1
CAMERA
Sensor	Front: 1/5” CMOS, 2M sensor Back: 1/4” CMOS, 5M sensor with LED flash
Resolution	Front: Support up to 1600 x 1200 pixels still image Back: Support up to 2594 x 1944 pixels still image
Automatic Image Control	Automatic white balance, gain control, and exposure control
FocusingType	Auto focus
Focus Distance	10cm ~ ∞
MOBILE BROADBAND
3G module for HSPA+/EV-DO/WCDMA/EDGE/GPRS/GSM

Accessories:

External Battery Pack
External, snap-on, hot-swappable battery pack - doubles duration of mobile operation, Li-Lon, 28.8W.

Internal Battery Pack
Replacement or spare for internal battery pack. Li-lon, 29.6W.

Desktop Charging Cradle
Docking support with ports for Power, USB and Ethernet. Power supply not included.

DisplayPort-Male to DVI-Female Adapter
Length: 0.2M / 7.9 Inch; for desktop cradle dual display outputs.

6-Bay External Battery Charger
Charges up to six External Battery Packs simultaneously.

Stylus
Proper tool to operate the Tablet's touch display. Available in kits only; 3 pieces per kit.

AC/DC Power Adapter with Power Cord
Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the device Cradle. (Choice of North America, UK or EU power cord).

Wall/Vehicle Mount Cradle
This wall/vehicle mount cradle offers Tablet storage and security with power, Ethernet pass-through, and two USB ports. Power input may be through (19V) cylindrical plug or (12V-24V) pluggable terminal block (Phoenix) connectors. Power supply is not included.

Shoulder Strap for Tablets
Padded for comfort, provides convenient mobile operation, strap is adjustable and can be attached to the Rubber Grips.

X-Handstrap
Designed to securely hold the Tablet. Made of soft plastic, easy to clean. For left- or right-handed users.

Keyboard Tray and Keyboard
A combo set of a keyboard tray and a USB keyboard for use with the Wall/Vehicle- Mount Cradle (the cradle is not included).

Automobile Power Adapter by LIND
Output voltage 65W/ 19V. Input: 11-16V DC.
