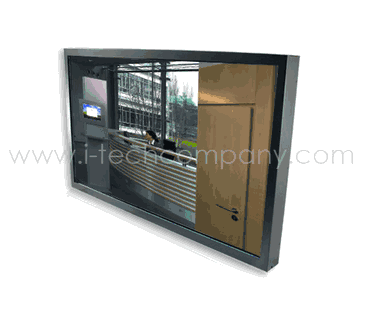

All in one PC Widescreen Display Chassis Mount, 42" LCD monitor, 1920 x 1080, 380 nits, Super Micro. (X9DRL-iF) (Model: SCPCW4200-CX7)

All in one PC Widescreen Display Chassis Mount, 42" LCD monitor, 1920 x 1080, 380 nits, Super Micro. (X9DRL-iF) (Model: SCPCW4200-CX7)

All in one PC Widescreen Display Chassis Mount, 42" LCD monitor, 1920 x 1080, 380 nits, Super Micro. (X9DRL-iF) (Model: SCPCW4200-CX7)

Inquiry/Quote Request
SCPCW4200-CX7
  • Overview
  • Download

Features


  1. Optical Multi Touch Provide Best Clarity of image with Protective Front Glass
  2. Metal Chassis Housing with built in speakers
  3. IR Remote Sensor
  4. Auto Power On/Off and Auto Signal On/Off


  1. Perforated rear Cover provide ample ventilation
  2. Recess handle can easily handle and install (42" and above)
  3. VESA Mount for Surface Mount
  4. Additional Cable Management Ring



  1. OSD: Power/Menu/Auto/Left/Right
  2. Main Power On/Off Switch
  3. VGA and DVI Video and Audio Input
  4. PC Reset Button


Display Specifications -LED PANEL
Active Screen Size 42" (16:9)
Display Area(mm) 930.24(H) x 523.26(V)
Number of Pixels 1920 x 1080
Contrast Ratio 4000 : 1
Colors 16.7M
Brightness(cd/m 2 ) 400 up to 700
View Angle R/L178° x U/D178°
Response Time 6.5 ms
Backlight Life Time 50,000/hr

Power
Power Input

100V~240V AC 50/60Hz

Total Power Consumption

124 W

Mechanical Specifications
Operating Temp. 0°~35°C
Relative Humidity 20~80% RH
Storage Temp. -20°~45°C
Dimensions(mm)

986(L)x583(W)x134(D)
Mounting(LxW/mm) 600(L)x200(W)

Accessories
CD x 1
Power Core x 1
Wall mount x 1
Remote Control x 1
I/O Cover x 1

System Specs
1. Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
2. Intel® C602 chipset; QPI up to 8.0GT/s
3. Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM sockets
4. Expansion slots: 1 PCI, 1 PCI-E 2.0 x1 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (in x8)
5. Intel® 82574L GbE LAN, 2 ports
6. 8x SATA2 and 2x SATA3 ports
7. Integrated IPMI 2.0 and KVM with Dedicated LAN=
8. 9x USB 2.0 ports (4 rear, 4 via header + 1 Type A)

Physical Stats
CPU Intel® Xeon® processor E5-2600  and E5-2600 v2 family†  (up to 130W TDP **)
Dual Socket R (LGA 2011)
Cache Up to 30MB
System Bus QPI up to 8 GT/s
Note †  BIOS version 3.0 or above is required
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support
System Memory
Memory Capacity 8x 240-pin DDR3 DIMM sockets
Up to 512GB DDR3 ECC LRDIMM
Up to 256GB DDR3 ECC RDIMM
Up to 64GB DDR3 ECC/non-ECC UDIMM
Memory Type 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

Support ECC and non-ECC UDIMMs
DIMM Sizes 32GB, 16GB, 8GB, 4GB, 2GB, 1GB,
 64GB LRDIMM
Memory Voltage 1.5 V, 1.35 V
Error Detection Corrects single-bit errors

Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C602 chipset
AHCI SATA SATA 2.0 3Gbps with RAID 0, 1, 5, 10

SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SCU SATA SATA 2.0 3Gbps with RAID 0, 1, 5, 10
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Network Controllers Intel® 82574L Gigabit Ethernet
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Video Matrox G200eW

Input / Output
AHCI SATA 2x SATA 3.0 ports (6Gbps)
4x SATA 2.0 ports (3Gbps)
SCU SATA 4x SATA 2.0 ports (3Gbps)
LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN po
USB 9 USB 2.0 ports total
(4 rear + 4 via header + 1 Type A)
Video 1 VGA port
Serial Port / Header 2 Fast UART 16550 port / 1 Header
DOM 1 DOM (Disk on Module) power connector
TPM 1 TPM 1.2 20-pin Header
Expansion Slots
PCI-Express 3 PCI-E 3.0 x8
1 PCI-E 2.0 x4 (in x8)
1 PCI-E 2.0 x1
1 PCI
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Management
Software SuperDoctor® III
Watch Dog
NMI
IPMI 1.5 / 2.0
Power Configurations ACPI / APM Power Management
Power-on mode for AC power recovery
Operating Environment
Operating Temperature Range 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
