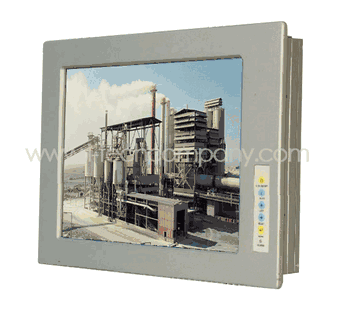

Features

1. Aluminum front panel meets IP 65 standard for tough working environment
2. Combination USB & RS-232 Touch Interfaces
3. Robust chassis and retention kit structure for shocking and vibration requirement
4. Over 300cd/m² high brightness and 50000hrs MTFB long lifetime panel
5. Analog VGA and DVI-D interface supports most of general system boards
6. M models support 9~36V DC power input for mobile application

Series Specifications

Model	EPM650 Series	EPM840 Series	EPM1040 Series	EPM1210 Series	EPM1510 Series	EPM1710 Series	EPM1910 Series
LCD Size	6.5"	8.4"	10.4"	12.1"	15"	17"	19"
Input Interface	VGA	VGA	VGA	VGA + DVI-D	VGA + DVI-D	VGA + DVI-D	VGA + DVI-D
Max. Resolution	640 x 480	800 x 600	800 x 600	1024 x 768	1024 x 768	1280 x 1024	1280 x 1024
Brightness (cd/m²)	800	450	400	500	350	300	300
Contrast Ratio	600:1	600:1	700:1	700:1	700:1	800:1	1000:1
LCD Color	262K	262K	262K	262K	16.2M	16.7M	16.7M
Pixel Pitch (mm)	0.207	0.213	0.264	0.3075	0.297	0.264	0.264
Front Frame	Aluminum
Chassis	Heavy-duty steel
View Angle (H/V)	160°/140°	160°/140°	160°/140°	160°/160°	140°/125°	170°/160°	170°/160°
AD Board	AV-9650	AV-6650	AV-6650	AV-6600	AV-6600	AV-6600	AV-6600
Power Adapter	36W	36W	36W	36W	50W	50W	50W
OSD Function	Yes
Mounting	Wall/Arm/Din Panel/Rack	Wall / Panel / Rack / Arm / Stand / VESA 100mm x 100mm
Dimension (WxHxD)(mm)	183 x 143 x 41	244 x 178 x 49	312 x 242 x 53	340 x 260 x 58	410 x 309 x 64.4	452 x 356 x 65.2	482 x 399 x 73
Color	Siver
Operating Temp.	-10°C~50°C				0°C~50°C
IP Level	IP65
Net Weight	1 kg	1.8 kgs	3 kgs	3.8 kgs	6 kgs	8.6 kgs	10 kgs

General Physical Dimensions

Model	Width (mm)	Height (mm)	Depth (mm)
EPM650 Series	482	399	73
EPM840 Series	452	356	65.2
EPM1040 Series	410	309	64.4
EPM1210 Series	340	260	58
EPM1510 Series	312	242	53
EPM1710 Series	244	178	49
EPM1910 Series	183	143	41

Rear Panel Connectors Overview

The touch panel controller enables analog resistive touch panels for four-wire, five-wire & eight-wire models. The controller directly communicates with the PC system through the touch panel communications interface. The controller design is superior in sensitivity, accuracy, and friendly operation. The touch panel driver emulates the left mouse button and the right mouse button functions.

The touch panel driver supports the following operating systems

Microsoft Windows versions:
• Microsoft Windows 2000
• Microsoft Windows XP
• Microsoft Windows 2003
• Microsoft Windows 2008
• Microsoft Windows Vista
• Microsoft Windows 7

Microsoft Windows CE versions:
• Microsoft Windows CE 4.2
• Microsoft Windows CE 5.0
• Microsoft Windows CE 6.0

Linux Kernel 2.6
DOS
