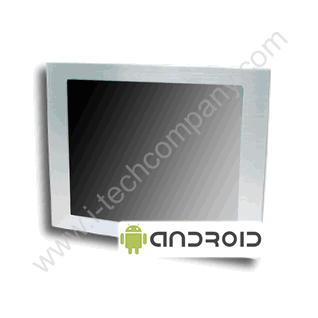

Fanless Panel PC 10.4" Aluminum Front Bezel, LED Backlight, HMIs ARM Cortex-A9 iMX6 Dual Lite / Quad Core 1.0 GHz (Model: KPC1040XAO)
Fanless Panel PC 10.4" Aluminum Front Bezel, LED Backlight, HMIs ARM Cortex-A9 iMX6 Dual Lite / Quad Core 1.0 GHz (Model: KPC1040XAO)
Main Feature
- Based on the Linux & Android operating system
- IP65 compliant aluminum / stainless steel front bezel
- 5-wire resistive touch screen
- A variety of I/O ports
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
- Contact Sales
The fanless low power Freescale i.MX6 processor-based front IP65 aluminum front bezel HMIs use 5 wires resistive single touch solution from 10.4" to 21.5" and adopts ARM architecture dual lite/quad Core Cortex-A9 processor 1.0GHz. also made with robust rear steel chassis with aluminum front bezel and can operate under harsh operating environment from ingress of dust and water, The users can benefit from the mounting: wall mount (VESA 100 x 100 & 75 x 75), panel mount and clips for specific sizes
Based on the open-source Android operating system, system integrators and software developers are easy to develop application programs. With ARM architecture advantages and rich I/O connectivity and we are confident that it will be a perfect solution for various applications such as HMI systems, factory automation, food automation, control process , monitoring control†¦†¦etc
| PC Specifications | |
| CPU | Freescale ARM Cortex-A9 iMX6 Dual Lite 1.0 GHz |
| Memory | 1GB DDR3 (On Board) |
| Power Supply | DC in 12V external power adaptor |
| I/O Ports (Default) | 1 x RS232, 1 x GLAN, 2 x USB, 1 x Audio out |
| Storage | 4GB eMMC ; MicroSD (SDXC) x1 |
| Operation Temperature | 0°C ~ 45°C |
| Storage Temperature | -30°C ~ 85°C |
| Relative Humidity | 20% ~ 90% non-condensing |
| OS Support | Android 4.4 |
| Installation | Panel mounting, clips, VESA mounting 75 x 75 mm (10.4" & 12.1") / 100 x 100 mm (15" ~ 21.5" ) |
| LCD Specifications | ||
| Display | Size / Aspect Ratio | 10.4" TFT (4:3) |
| Backlight | LED | |
| Resolution | 1024 x 768 | |
| Colors | 16.2M | |
| Luminance (cd/m2) | 350 | |
| Contrast Ratio | 1200:1 | |
| Viewing Angle (H/V°) | 176/176 | |
| MTBF (hrs) | 50,000 | |
| Touch Screen | 5-wire resistive | |
| Dimension (W x H x D, mm) | 302 x 224 x 70.2 | |
| Weight (kg) | 4.5 | |
