1U Rackmount Monitor 15" LCD Light Weight Drawer (Model:BHK115Le)

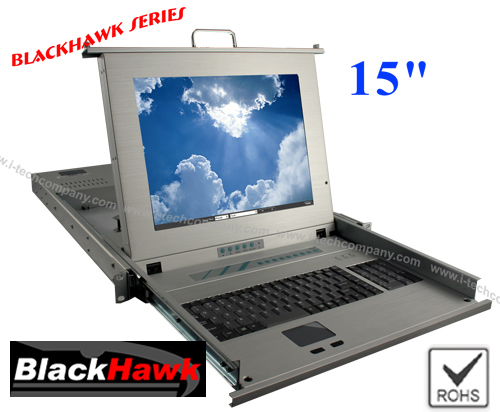

Lightweight 1U Rackmount LCD 15" Monitor Keyboard Drawer, light weight (17.6 lbs) (Model:BHK115Le)
  • Keyboard
  • Keyboard Close Up
  • Top View
  • Handle
  • Side View
  • Lock Latches
  • Back View
  • Back View
  • Back View

Lightweight 1U Rackmount LCD 15" Monitor Keyboard Drawer, light weight (17.6 lbs) (Model:BHK115Le)

Inquiry/Quote Request
bhk115le
  • Overview
  • Specifications
  • Download
Product Discontinued. Contact us at Info@iTechLCD.com for Replace items.

Minimum order 15 pcs with 10 weeks lead time.

BHK Series RoHS compliant NOW is available!!
Features and Benefits
  • Only 1U (1.75" high) of vertical 19" rack-mount space.
  • 1U Dual Slides allows see LCD through closed  cabinet door
  • 19" deep Chassis for LCD 15"/17" without KVM or 23" deep Chassis for 15"/17" LCD with KVM
  • Light aluminum frame
  • Protective Anti-glare Glass for more protection for LCD
  • Auto Shut off when LCD is in park position
  • Laptop-style tilting display provides for short pull-out and minimal intrusion into the aisle space in front of the rack.
  • High-brightness 250-nit,TFT LCD Panel and high contrast-ration active TFT LCD flat panel integrated folding display.
  • 15.1" display supporting 1024 x 768 resolution.
  • Full 101-keys Windows keyboard (including a dedicated numeric keypad), and an integrated touch-pad pointing device.
  • Smooth-operating sliding rails that self-lock when pulled all the way out.
  • Build-in power supply
  • Built-in thumb screws for securing the unit when folded and pushed all the way in.
  • Meets EIA310c & IEC-3 Specifications
  • Add PCs or Remove Connected PCs for Maintenance without powering down the KVM switch for PCs

Comes with

  • (1) Blackhawk Aluminum KVM drawer unit
  • (1) 3-in-one PS/2 KVM cable, 6-feet
  • (2) Rear extension mounting brackets
  • (8) Mounting screws for rear extension mounting brackets
  • (1) US Power cord
  • (1) User Manual
Specification
LCD
Panel TFT 15? LCD Panel
Screen Type TFT
Frequency 60Hz
Contrast Ratio 350 : 1
Viewing Angle 120° (H) x 120 ° (V)
Resolution 1024 x 768
Pixel pitch 0.297(H) x 0.297(W) mm
Response Time Tr=5ms, Tf=20ms (Typ.)
Brightness 250 cd/m2
Panel Color 16.2M
Backlight MTBF 50,000 hours under 20 - 30°C
KVM (BHK115-8Le only)
Computer Connectors 8/16
Connector 15-pin HDB type, Keyboard,mouse, all-in-1
Cascade Level 8 Levels
Max. Access PCs 128
Input VGA Resolution 1920 x 1440
Power Supply
Built-in Adapter 110V - 220V AC Input 12V 5A Output
Cable Legnght 6 ft (182cm)
Safety Approval FCC, CE
Diagram


Ordering Information
Model no. Description
 Net / gross weight
BHK115Le 1U height, 15" TFT LCD monitor keyboard drawer
 8kg / 15kg
BHK115-8Le 1U height, 15" TFT LCD monitor keyboard drawer with 8 port KVM switch
 9kg / 16kg
BHK117Le 1U height, 17" TFT LCD monitor
keyboard drawer
8.5kg / 17kg
BHK117-8Le 1U height, 17" TFT LCD monitor keyboard drawer with 8 port KVM switch
9.5kg / 18kg
BHK117-16Le

1U height, 17" TFT LCD monitor keyboard drawer with 16 port KVM switch
10.5kg / 19kg
