CV-101: PS/2 CAT5 KVM Extender

CV-101: PS/2 CAT5 KVM Extender
  • Receiver
  • Transmitter

CV-101: PS/2 CAT5 KVM Extender

Inquiry/Quote Request
CV-101
  • Overview
  • Specifications
  • Download

Product discontinues. Contact us at Info@iTechLCD.com for replacement item.

Description

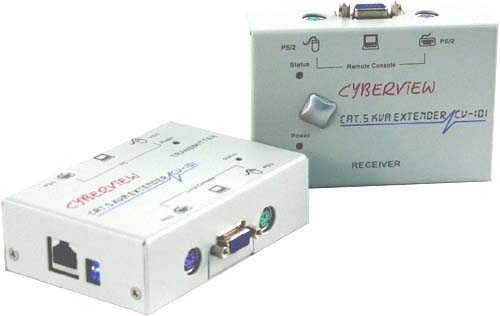

CV-101 CAT.5 KVM Extender includes a transmitter-receiver (101-T/101-R) pair that enables you to locate a PC in a clean, secure area and access the PC from any convenient, remote location. The remote user (keyboard, monitor, and mouse), connected to the receiver, can be up to 500 feet from the PC using Category 5 UPT cable. In addition to the remote user, a local user (keyboard, monitor, and mouse) can be connected to the transmitter. Similarly, CV-101 can be used to extend distances between KVM switches, user consoles, and connected computers

General Features

  • Allows remote access of up to 1000 feet away via CAT. 5, CAT.5e, CAT. 6 UTP cables
  • Dual console operation - control your system from either the local or remote keyboards, mice, and monitors
  • Additional dual version features
    • Fully automatic KVM sharing on first-come first serve basis
    • Displays video to both local/remote side simultaneously
  • Compact desktop size
  • Plug-n-Play - no software installation
  • Hot-plug USB keyboard and Mouse design
  • High video resolution - up to 1,600 x 1,200
  • Compatible with SunR Solaris and USB server,as well as MicrosoftR, WindowsR, LinuxR, UnixR and NetwareR.
Model Number
CV-101T
CV-101R
Transmiter
Receiver
Local Console
PC
Remote Console
Connector Keyboard
PS/2 mini-din 6 pin (Female)
PS/2 mini-din 6 pin (Female)
Mouse
PS/2 mini-din 6 pin (Female)
PS/2 mini-din 6 pin (Female)
Monitor
VGA HD-15 pin (Female)
VGA HD-15 pin (Female)
Unit to unit
RJ-45 8P8C (Same as Ethernet 100 BaseT part)
Connection Cable type
N/A
3-in-1 Cable
CAT5/ CAT5e/CAT6
Cable length
N/A
Standard 2 feet Optional 6/10/15 feet
up to 500 feet
Video Bandwidth
250MHz
N/A
150MHz
Resolution
up to 1600 x 1200
N/A
Distance to 500 feet: up to 1280 x 1024
Compatibility
SVGA, VGA, SXGA, XGA
Levels
0.7v P-P
Compensation
N/A
N/A
Auto adjust
Coupling
DC
Sync type
Separate/ Composite TTL level SYNC palanity is preserved
LED
Power: 1 x Green; Data: 1 x Red
Power requirement to unit
From PC
DC 9V, 500mA
Housing
Metal
Environment Temperature
0 ~ 40°C
Humidity
0 ~ 80%
Dimensions Length(cm)
11
Width(cm)
7.5
Height(cm)
3.2
Net Weight
0.5kg
0.5kg
Supported Keyboard
PC/AT, PS/2
N/A
PC/AT, PS/2
Supported mouse
Standard PS/2 two Buton Microsoft® Intellimouse
N/A
Standard PS/2 two Buton Microsoft® Intellimouse
