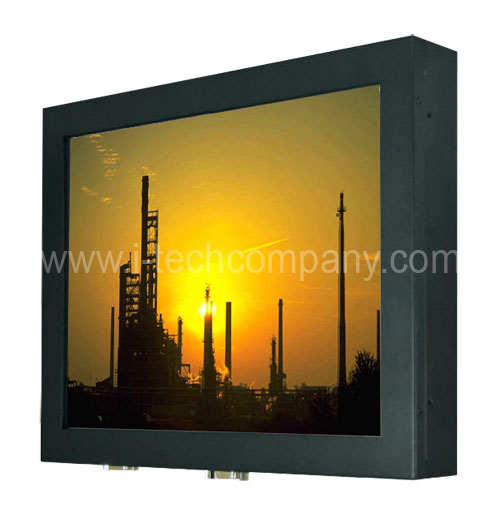

12.1" Chassis Mount LCD Monitor VGA (Model WCH1210M2)
12.1" Chassis Mount LCD Monitor VGA, Optional AV inputs, Touch Screen in Chassis Mount 12.1" LCD display (Model WCH1210M2)
X
Inquiry/Quote Request
- Overview
- Download
Specifications
| Technical Description | |
| Model Name | WCH1210M2 |
| Screen Size (diagonal) | 12.1" |
| Active Display Area (mm) | 245.76(H) x 184.32(V) |
| Pixel Pitch (mm) | 0.240(H) x 0.240(V) |
| Native Display Resolution (pixels) | 1024x768 |
| Brightness (CD/m^2) | 500(typ.) |
| Contrast Ratio | 700:1 (typ.) |
| Viewing Angles (L/R/U/D) | -80~80 (H); -70~70 (V) |
| Number of Colors | 262k/16.2M |
| Optional Touch Screen | Resistive, Capacitive |
| Power Information | |
| Power Source | 12V DC in, with External AC to DC Adapter (100~240V AC) |
| Power Consumption(Normal operation) | 15 W typical, normal operation |
| Power Input | VESA DPMS Compliant |
| Display Signals | |
| Plug & Play | VESA DDC 1/2B |
| Video Input (optional) | S-Video, Composite |
| DVI Input (optional) | No |
*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
