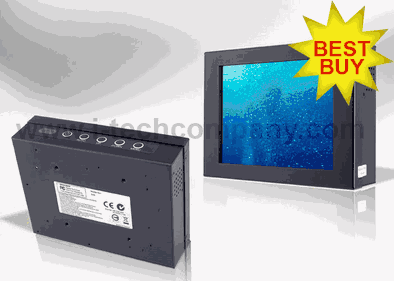

Chassis, 8" LCD monitor, 640 x 480, 350 nits w/ Resistive touch screen (Model: ECH800-TR)

Overview

ECH Series: Industrial Chassis Wall/Surface Mount Metal Housing LCD Monitor (Optional Integrated Touch Screen/PC/ DC Input/Front NEMA4x/Front Stainless steel bezel and more...

Features Highlights:

1. Metal Chassis/Housing for higher Impact protection. (Optional for Front AR Glass or Vandal Resistant glass)
2. Built-in speak built-in speakers that allow the convenience Audio output.
3. Side OSD buttons can prevent unnecessary setting changes.
4. Above 24" LCD will include Front IR Sensor and Remote controller.
5. Auto Video Signal ON / OFF Auto Always Power On

1. Ultra low speed/Noise fan for extra cooling (24" LCD or above)
2. VESA Mounting Hole Pattern
3. Reliable built-in Power supply for 15" or above (Optional for 9-36V DC input)
4. Standard VGA Input (Optional for DVI. HDMI, AV, BNC, AV looping and SDI)
5. Optional for RS232 Remote Control Protocol: Command Code to set system

LCD Options

LED Backlight

Introducing LED backlight options for monitors for energy efficiency and a brighter screen.

The benefits of LED-backlit LCDs include:

Longer operating life
Low power consumption
Environmental friendliness (Mercury [Hg] free)
Greater resistance to mechanical shock (no glass tubes)
Quicker illumination to stable brightness
Wide dimming ratio (to <1%)
Reduction of electronic noise (low DC drive voltage)

TouchScreen

Our LCD has a wide selection option to choose which touchscreen.technology suits for you.

	Four-Wire Resistive	Five-Wire Resistive	Pen Touch	Capacitive	Surface Wave(Saw)	Infrared Touch (Ir)
PRODUCT SIZE	1.7" - 24"	10.4" - 24"	15" - 19"	12" - 24"	10.4" - 30"	10.4" - 42"
TOUCH LIFE	1 - 2 million touches	30 - 35million touches	100 million touches	100 million touches	50 million touches	Long-term reliability
SCRATCH RESISTANCE	Hard Coated	Hard Coated	Hard Coated (SiO²)	Hard Coated (SiO²)	Glass Overlay Moh's hardness rating of 7	Glass Overlay Moh's hardness rating of 7
CONTAMINANT RESISTANCE	Resists moisture, dirt, vinegar, ammonia based food products and cleansers	Resists moisture, dirt, vinegar, ammonia based food products and cleansers	Resists moisture, dirt, vinegar, ammonia based food products and cleansers	Resists moisture, dirt, vinegar, ammonia based food products and cleansers	Resists moisture, dirt, vinegar, ammonia based food products and cleansers	Resists moisture, dirt, vinegar, ammonia based food products and cleansers
INPUT METHOD	Finger, Gloved Hand, Stylus	Finger, Gloved Hand, Stylus	Stylus Pen	Finger	Finger, Gloved Hand, Soft pliable stylus	Finger, Gloved Hand, Stylus
CONTROLLER	USB, RS232	USB, RS232	USB, RS232	USB, RS232	USB, RS232	USB, RS232

VIDEO Input

For Video inputs options:

DVI
DVI+HDMI
SVideo+AV
SVideo+AV+DVI
AV+Looping
DVI+AV+Looping
HD-SDI

Optical Bonding

Optical Bonding provides the best reduction of ambient light washout of any commercially available enhancement technology.
Optical Bonding has a lower cost than most other competing technologies.
Optical Bonding offers superior ruggedization, enhancing the display durability under vibration, shock and other environmental extremes.
