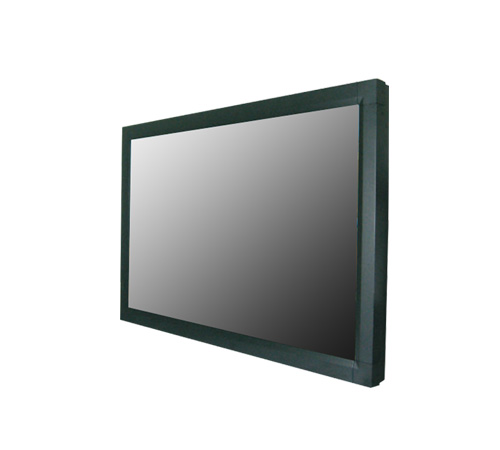

42" Front Water and dust Proof IP54/NEMA 4 LCD Monitor with IP54 Solid Back housing except I/O. Rear OSD 1920 x 1080, 450 nits VGA + DVI + HDMI Input, with protective front tempered clean glass (Model: CCHW4200G-IR-125AC)
Front Water and dust Proof IP54/NEMA 4 with IP54 Solid Back housing except I/O. Rear OSD Industrial Chassis/Wall Mount Heavy Duty Metal Housing , 42" LCD monitor, 1920 x 1080, 450 nits VGA + DVI + HDMI Input, with protective front tempered clean glass, 125VDC ( Terminal Block with "+' / "-" )+ Power on/off Switch + Normal Clean Glass + IR touch screen with USB controller + Front OSD controls Brightness "+" / "-" directly
Main Feature
- High Contrast color LCD Monitor with resolution up to Full HD (1920 x 1080)
- Energy Star standards power management system.
- High Shock & Vibration Resistance
- Widely Application: Automation, Medical, Tourist, Transportation
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
Display |
Viewing Size Image | 42" | |
| Active Display Area (mm) | 930.25 (H) x 523.01 (V) | ||
| Pixel Pitch (mm) | 0.4845(H)x 0.4845(V) | ||
| Resolution | 1920x1080 | ||
| Contrast Ratio | 4000:1(typ.) | ||
| Color | 16.7 M(8bits+colors) | ||
| Brightness | 450nits | ||
| Viewing Angle | -89~89 (H) ; -89~89 (V) | ||
| Recommended Resolution | 1920 x 1080 @ 60Hz | ||
| Signal Connector | VGA + DVI + HDMI | ||
Power |
Source | 125VDC (Terminal Block with "+" / "-") | |
| Consumption | 110W typical, normal operation | ||
| Management | VESA DPMS Compliant | ||
|
Optional |
Touch | Resistive, PCAP,IR | |
| High Brightness | 1000,1500 | ||
| Auto Dimming | YES | ||
| POWER | DC24V | ||
| Remote Control | YES | ||
| IO | AV,DP | ||
| Sales Inquiry | ||
 |
Sales Phone: | 888-483-2418/Press 2 510-226-9226/Press 2 |
 |
Email: | sales@itechlcd.com |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
