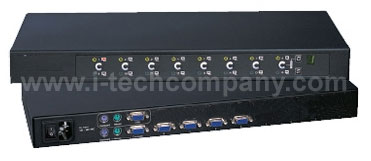

1 user, 4-port 1U Rackmount PS/2 KVM Switches with OSD (Includes 4 cables) (Model: NV401A)

1 user, 4-port 1U Rackmount PS/2 KVM Switches with OSD (Includes 4 cables) (Model: NV401A)
  • Rear View
  • Accessories
  • Construction
  • Cable

1 user, 4-port 1U Rackmount PS/2 KVM Switches with OSD (Includes 4 cables) (Model: NV401A)

Inquiry/Quote Request
cv401
  • Overview
  • Specifications
  • Download
PS/2 DB-15 KVM Benefits:
  • PS/2 DB-15 KVM with either 4, 8 or 16 in 1U.
  • Mix PS/2, USB & SUN with Multi-Platform switch capability.
  • Low cost reliable PS/2 based server management.
  • No software or drivers required.
  • Easy & quick installation.
Switch Features & Options:
  • Multi lingual on screen display menu
  • Advance user profiles and configurable OSD hot key combinations
  • Dual power with failover
12V, 24V and 48V DC Power option

Designed for:









Technical Specifications:

KVM Port 16 / 8 / 4 x DB-15 combo connector
KVM Cable PS/2 3 in 1 KVM cable, up to 6, 10, 15 & 33 ft
Local Console: 1 x DB-15 VGA (up to 1600x1200), 2 x PS/2 for KB & MS
Expansion Up to 128 servers by 8-level cascade
Compatibility Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server, Windows Vista / 2003 / XP /2000, Linux, Netware, Unix
Power 100~240VAC, 50 / 60Hz 0.3A via IEC type cord (12V / 24V / 48V DC input option)
Regulatory Approval: FCC, CE
Environmental
Operating / Storage 0 to 50°C / -5 to 60°C
Relative Humidity 90%, non condensing
Shock 50G peak acceleration (11ms, half sine wave)
Vibration 58~100Hz / 0.98G (11min / cycle)

Accessories:
ND-6, ND-10, ND-15, ND-33

SUN-31 kit

NA-6
PS/2 3 in 1 KVM cable - 6, 10, 15 & 33 ft. PS/2 SUN / USB adapter 6ft. PS/2 LVM cascade cable


Dimensions:
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net Weight
Gross Weight
NV401A
446 x 200 x 44 mm
17.6 x 7.9 x 1.73 inch
510 x 400 x 77 mm
20.1 x 15.7 x 3 inch
3.5 kg / 8 lbs
4 kg / 9 lbs
NV801A / NV1601A
446 x 180 x 44 mm
17.6 x 7.1 x 1.73 inch
510 x 400 x 77 mm
20.1 x 15.7 x 3 inch
4 kg / 9 lbs
4.5 kg / 10 lbs

KVM Switches Specifications

Model No

CV-401

KVM switches

CV-801

KVM switches

CV-1601

KVM switches
Computer connections 4 8 16
Console Connections
Keyboard 6-pin mini DIN x 1
Mouse 6-pin mini DIN x 1
Monitor 15-pin HDB type x 1
Cascade 15-pin HDB type x 1 & 6 pin mini DIN x 2
Cascade Port 1 1 1
On Screen display Yes Yes Yes
19" rackmount Yes Yes Yes
Cascade (Level) 8 8 8
Max. access PCs 116 120 128
Manual Selection Push Button
Hot key Yes Yes Yes
Switching confirmation Buzzer
Keyboard state Saved and restored
Keyboard PS/2
Mouse PS/2
Monitor VGA, SVGA, SGA, MutiSync
Resolution 1,920 x 1,440
Bandwidth 200MHz
Enclosure Metal
Storage -20o -60oC
Dimension (L) x (W) x (H) inch 4.3" x 17.7" x 1.75" (11x 4.9 x 4.4 cm)
Net weight (lbs) 7.7 lbs (3.5kg) 7.7 lbs (3.5kg) 8.8 lbs (4kg)
Power Supply 110-220V AC input 12V, 1A output (Mains plug options available
