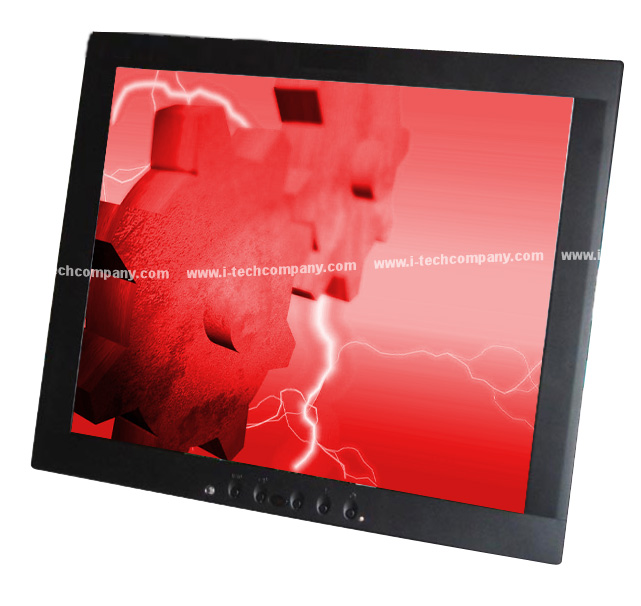

17” Black SAW USB Touch LCD Monitor (FOB NJ) (Model: FCH1700-SAW-U)

Utilizing surface acoustic wave touch technology, the 17 Inch Desktop TouchScreen LCD Monitor is a lightweight touchscreen system that easily fits in almost any situation. The acoustic wave serial and USB touch screen offers an extra-tough pure-glass substrate that resist vandalism (continue to work if scratched) in addition to stable "drift-free" operations – even with gloved hands. Its small footprint is ideal for space-limited interactive touch environments, such as Point-of-Sale (POS) applications, ATM machines, medical equipment, and industrial process control.

The 17 Inch Desktop TouchScreen LCD Monitor comes in two different models: a surface acoustic wave serial touch screen and a surface acoustic wave USB touch screen. Built from market-leading components from Elotouch, the 17 Inch Desktop TouchScreen LCD Monitor is built for a durable interactive touch screen experience for system integrators and value-added resellers. Learn more about which 17 Inch Desktop TouchScreen LCD Monitor model is right for you.

Each model features 1280 x 1024 touch monitor resolution with a simple on-screen menu system that is DOS-, Windows-, and Linux-compatible. The small open-frame design allows for flexible control mounting on the side or the rear both the resistive serial touch screen or resistive USB touch screen models. Value-added options, such as a Digital Signage Solutions Player , offer even more flexibility, making the 17 Inch Desktop TouchScreen LCD Monitor the complete interactive touch monitor experience!

17 Inch Black Acoustic Wave Desktop Touch Monitor Features

• UL, CSA, TUV, FCC B, VCCI B, CE, TCO 99, TUV Ergo, EPA Energy Star certification
• Plug and Play via standard VGA (DB-15) analog source
• VESA 100mm x 100mm available
• Superior viewing angles, contrast ratio, and brightness
• Photo frame stand for touch screen design
• Touch Drivers support DOS, Windows, Mac, and Linux operating system

Specifications

Model	FCH1700-SAW-U
Touch Interface	USB port
LCD Panel
Display Panel	17 inch TFT LCD
Pixel Pitch	0.264(H) x 0.264(V) mm
Max. Resolution	1280 x 1024 SXGA
Contrast Ratio	400:1 (typical)
Brightness	200 cd/m2  (typical, 80% of original brightness)
Uniformity	80% (typical)
Backlight MTBF	50,000 hours (typical at 25°C)
Response Time	25 ms (typical)
Display Colors	16 million
Viewing Angle	±85°L/R, ±85°U/D (typical at CR=5)
Video and Power
OSD Controls	Brightness, Contrast, Phase, Clock, Color, H&V position, Auto-tune, Recall
Input Signal	RGB analog 0.7V peak to peak
Video Input Connector	D-sub 15 pin analog
Scan Frequency	24-62 kHz horizontal scan, 50-75 Hz vertical refresh
Power Supply	AC/DC 12V power adapter, universal 100-240 Volts
Mechanical and Environment
Operating Temperature	0~50°C [32~122°F]
Storage Temperature	-20~65°C [-4~149°F]
Humidity	85% (maximum)
Dimensions (WxHxD)	393.7 x 330.2 x 69.85mm [15.5 x 13 x 2.75 inch]
Net Weight	6.8 Kg [15 Lb]

Package Includes

• 6ft VGA cable
• 6ft Power cable
• 6ft Touch cable
• AC/DC Power Adapter
• Monitor
• Touch Driver CD
