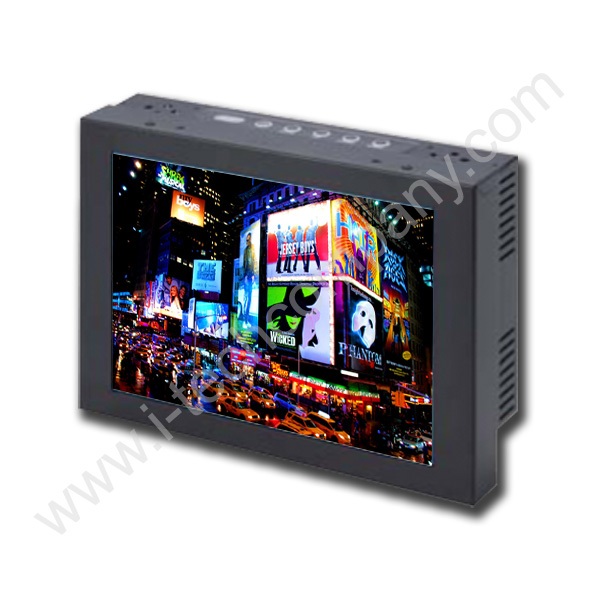

Digital Signage LCD Frame Advertising Bulit in Media Player Commercial Grade Displays, Chassis/Wall Mount Metal Housing 10.4" LCD monitor, 1024x768, LED-400nits,, Wide Veiwing Angle (178°/178° MVA), WT(-30~70?), Max Resolution output 720P, CF / SD / USB Plug and Play,Built in Speakers, Output VGA x1, Remote Control, Side OSD. (Model: EDD1040XWV)
Digital Signage LCD Frame Advertising Bulit in Media Player Commercial Grade Displays, Chassis/Wall Mount Metal Housing 10.4" LCD monitor, 1024x768, LED-400nits,, Wide Veiwing Angle (178°/178° MVA), WT(-30~70?), Max Resolution output 720P, CF / SD / USB Plug and Play,Built in Speakers, Output VGA x1, Remote Control, Side OSD. (Model: EDD1040XWV)
Main Feature
- Digital Signage LCD Frame
- Commercial Grade LCD with Metal housing
- CF / SD / USB Plug and Play
- High Definition Resolution 1024 x 768
- Max Resolution output 720P
- LED backlit
- Play Video/Photo/Music
- JPG,MP3,MPG1/2,AVI ,XVid
- Wide Viewing angle
- Auto-Play, Auto-repeat
- Support Timer to programming power on/off
- Support play list to specify files to play
- Support Programmable Photo Slide Timing
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
- Contact Sales
Additional Features
- Support Disconnection Memory to continuously play where it break- Power Resume : Continue play the content from break point after power recover
- Power on password Setting
- Photo Rotation
- Full Function Remote Control
- Built in Speakers
- Optional High brightness 1000nits
- Optional Motion Sensors and Dimming Sensors
- Optional 6mm Vandal Proof Safety Glass
- Optional Stainless steel Front Bezel
- Optional Anti-Reflective AR 3mm Front Glass for protection
 |
|
 |
| Panel | Cell Type / Glass Surface | TFT LCD / Black Anti-Glare, low reflection coating |
| Aspect Ratio / Size | 4 : 3 / 10.4" viewable diagonal area | |
| Active Area / Pixel Pitch | 210.4(H) x 157.8(V) mm / 0.2055(H) x 0.2055(V) mm | |
| Native Resolution / Colors | 1024(H) x 768(V) / 16.2 M | |
| Brightness / Contrast | 400 cd/m2 (typ) / 600 : 1 | |
| Response Time | ≦ 25 ms | |
| Viewing Angle (typical) | H. 178o (- 89o ~ + 89o) , V. 178o(- 89o ~ + 89o) | |
| Light Source | LED backlight, Long life, 35,000 hrs (typ) | |
| Power | External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz | |
| Power Consumption | Operation / Power Saving | 22 watt , < 2 watt (Support DPMS) |
| Operating Condition | Temperature / Humidity | -30oC ~ 70oC (-22oF ~ 158oF) , 10% ~ 90% (no condensation) |
| Storage Condition | Temperature / Humidity | -30oC ~ 80oC (-22oF ~ 176oF) , 10% ~ 90% (no condensation) |
| Certification | FCC , CE | |
| Dimensions | Physical | W x H x D = 263 x 200 x 66 mm |
| Carton | W x H x D = 325 x 330 x 135 mm | |
| Weight | N.W. / G.W. | 3.5 Kgs / 4.5 Kgs |
| Container Loaded | 20ft / 40ft / 40ft HQ | TBD (Sets , By pallet) |
| Options | Touch | Video/TV | Enhanced Panel | Others |
| Resistive touch | SV + AV | Panel with LED backlight | Digital Signage(Stand alone) | |
| Capacitive touch | SV + AV + AV_Looping | High brightness panel | Networking Digital Signage | |
| SAW touch | SV + AV + TV | Wide Temperature | Motion Sensor | |
| Infrared touch | Sunlight Readable | Light Sensor | ||
| Protected glass | Auto-Dimming |
