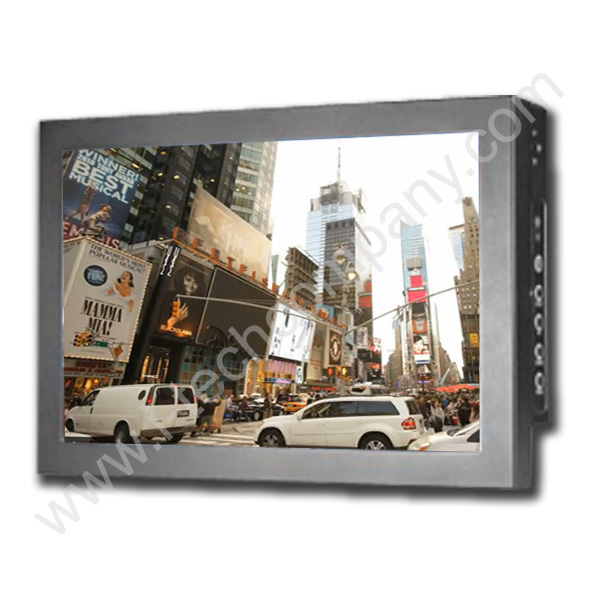

Digital Signage LCD Frame Advertising Bulit in Media Player Commercial Grade Displays, Chassis/Wall Mount Metal Housing 22" LCD monitor, 1680x1050, LED-250nits,, Wide Viewing Angle(178°/178° MVA), HD output 1080P, CF / SD / USB Plug and Play,Built in Speakers, Output VGA x1, Remote Control, Side OSD. (Model: EDDW2200WV)
Digital Signage LCD Frame Advertising Bulit in Media Player Commercial Grade Displays, Chassis/Wall Mount Metal Housing 22" LCD monitor, 1680x1050, LED-250nits,, Wide Viewing Angle(178°/178° MVA), HD output 1080P, CF / SD / USB Plug and Play,Built in Speakers, Output VGA x1, Remote Control, Side OSD. (Model: EDDW2200WV)
Main Feature
- Digital Signage LCD Frame
- Commercial Grade LCD with Metal housing
- CF / SD / USB Plug and Play
- High Definition Resolution 1680 x 1050
- HD output 1080P
- LED backlit
- Play Video/Photo/Music
- JPG,MP3,MPG1/2/4,AVI ,DIVX
- Wide Viewing angle
- Auto-Play, Auto-repeat
- Support Timer to programming power on/off
- Support play list to specify files to play
- Support Programmable Photo Slide Timing
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
- Contact Sales
Additional Features
- Support Disconnection Memory to continuously play where it break- Power Resume : Continue play the content from break point after power recover
- Power on password Setting
- Photo Rotation
- Full Function Remote Control
- Built in Speakers
- Optional High brightness 1000nits
- Optional Motion Sensors and Dimming Sensors
- Optional 6mm Vandal Proof Safety Glass
- Optional Stainless steel Front Bezel
- Optional Anti-Reflective AR 3mm Front Glass for protection
 |
|
 |
| Panel | Cell Type / Glass Surface | TFT LCD / Black Anti-Glare, low reflection coating |
| Aspect Ratio / Size | Wide / 22" viewable diagonal area | |
| Active Area / Pixel Pitch | 473.8(H) x 296.1(V) mm / 0.282(H) x 0.282(V) mm | |
| Native Resolution / Colors | 1680(H) x 1050(V) / 16.7 Million | |
| Brightness / Contrast | 250 cd/m2 (typ) / 1000 : 1 | |
| Response Time | ≦ 5 ms | |
| Viewing Angle (typical) | H. 178o, V. 178o | |
| Light Source | LED backlight, Long life, 35,000 hrs (typ) | |
| Power | Internal power supply with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz | |
| Power Consumption | Operation / Power Saving | 36 watt , < 2 watt (Support DPMS) |
| Operating Condition | Temperature / Humidity | 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation) |
| Storage Condition | Temperature / Humidity | - 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation) |
| Certification | FCC , CE | |
| Dimensions | Physical | W x H x D = 532.2 x 346 x 66 mm |
| Carton | W x H x D = TBD | |
| Weight | N.W. / G.W. | 9 Kgs / 10.5 Kgs |
| Container Loaded | 20ft / 40ft / 40ft HQ | TBD (Sets , By pallet) |
| Options | Touch | Video/TV | Enhanced Panel | Others |
| Resistive touch | SV + AV | Panel with LED backlight | Digital Signage(Stand alone) | |
| Capacitive touch | SV + AV + AV_Looping | High brightness panel | Networking Digital Signage | |
| SAW touch | SV + AV + TV | Wide Temperature | Motion Sensor | |
| Infrared touch | Sunlight Readable | Light Sensor | ||
| Protected glass | Auto-Dimming |
