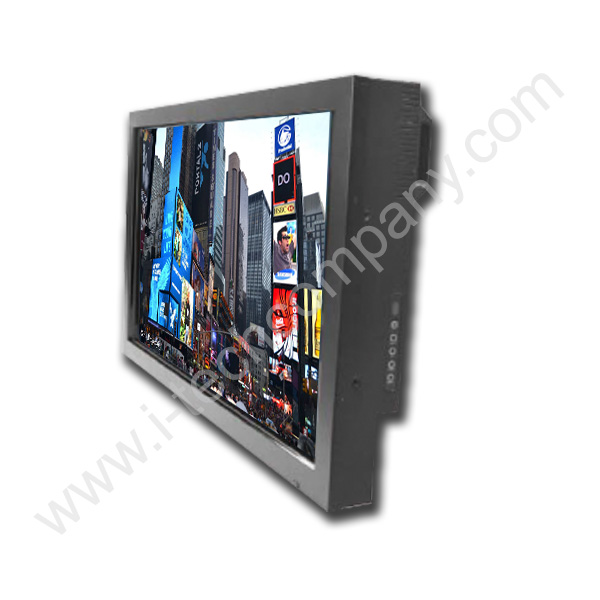

Digital Signage LCD Frame Advertising Bulit in Media Player Commercial Grade Displays, Chassis/Wall Mount Metal Housing 55" LCD monitor, 1920x1080, LED-350nits,, HD output 1080P, CF / SD / USB Plug and Play,Built in Speakers, Output VGA x1, Remote Control, Side OSD. (Model: EDDW5500)

Main Feature

Digital Signage LCD Frame
Commercial Grade LCD with Metal housing
CF / SD / USB Plug and Play
High Definition Resolution 1920 x 1080
HD output 1080P
LED backlit
Play Video/Photo/Music
JPG,MP3,MPG1/2/4,AVI ,DIVX
Wide Viewing angle
Auto-Play, Auto-repeat
Support Timer to programming power on/off
Support play list to specify files to play
Support Programmable Photo Slide Timing

Overview
Specifications
Contact Sales

Additional Features

- Support Disconnection Memory to continuously play where it break
- Power Resume : Continue play the content from break point after power recover
- Power on password Setting
- Photo Rotation
- Full Function Remote Control
- Built in Speakers
- Optional High brightness 1000nits
- Optional Motion Sensors and Dimming Sensors
- Optional 6mm Vandal Proof Safety Glass
- Optional Stainless steel Front Bezel
- Optional Anti-Reflective AR 3mm Front Glass for protection

VGA Output Port

USB Plugin

CF Plugin

SD Card Plugin

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	Wide / 55" viewable diagonal area
	Active Area / Pixel Pitch	1209.6(H) x 680.4(V) mm / 0.63(H) x 0.63(V) mm
	Native Resolution / Colors	1920(H) x 1080(V) / 16.7Million
	Brightness / Contrast	350 cd/m2 (typ) / 3000 : 1
	Response Time	≦ 8 ms
	Viewing Angle (typical)	H. 178o (- 89o ~ + 89o) , V. 178o(- 89o ~ + 89o)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
Power	Internal power supply with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption	Operation / Power Saving	280 watt , < 2 watt (Support DPMS)
Operating Condition	Temperature / Humidity	0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certification		FCC , CE
Dimensions	Physical	W x H x D = 1331.4 x 738.3 x 177.8 mm
Dimensions	Carton	W x H x D = TBD
Weight	N.W. / G.W.	43.5 Kgs / 46.5 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)

Options	Touch	Video/TV	Enhanced Panel	Others
	Resistive touch	SV + AV	Panel with LED backlight	Digital Signage(Stand alone)
	Capacitive touch	SV + AV + AV_Looping	High brightness panel	Networking Digital Signage
	SAW touch	SV + AV + TV	Wide Temperature	Motion Sensor
	Infrared touch		Sunlight Readable	Light Sensor
	Protected glass			Auto-Dimming
