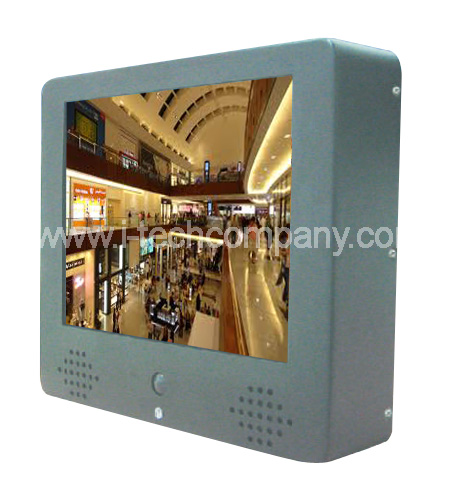

8.4" Chassis Mount LCD Monitor Media Player (Model: WCHMP840U1)

Digital Dynamic Signage Chassis Mount LCD Monitor Media Player 8.4" (Model: WCHMP840U1)

Digital Dynamic Signage Chassis Mount LCD Monitor Media Player 8.4" (Model: WCHMP840U1)

Inquiry/Quote Request
WCHMP840U1
  • Overview
  • Download


Features:

  • Credit Card Style Remote Controller
  • Simple/Powerful Multimedia Platform
  • Playback Functions: Play, Stop, Pause, Repeat, Previous/Next Track, Mute, Rotate,
  • Interval Time, Play List and Media Classification
  • All-in-one Full-range LCD solutions
  •  Built-in 6 types Memory card slots- Compact Flash card, IBM Micro Drive, SM/ MMC/ SD/
  • MS card
  • Durable Metal Housing
  • Low Total Ownership cost
  • Optional Power Saving with Motion Detect and Auto Timing Setting Boot.
Built-In Media Player

Specification
Screen Size 8.4"
Active Display Area (mm) 170.4(H) x 127.8(V)
Pixel Pitch (mm) 0.213(H) x 0.213(V)
Panel Resolution (pixels) 800x600
Contrast Ratio 600:1
Display Color 16.2M
Brightness (CD/m^2) 400(typ.)
Viewing Angles (CR >=10) -75~75(H) ; -60~70(H)
Synchronization Range_Horizontal / Vertical 31.5~46.9KHz / 60~75Hz
Recommended Resolution 800x600@60Hz, 75Hz
Net Weight (kg) 1.5
Power Source 12V DC in, with External AC to DC Adapter (100~240 AC)
Power Consumption 15W typical,normal operation
Power Management VESA DPMS Compliant
VESA Mounting Yes
Mechanical Chassis
Playable Format MPEG1/2/4,JPEG,MP3
Storage Medium CF/IBM Microdrive/SM/MMC/SD/MS card
USB Port x1(optional)
Audio Output Stereo Ouput 2Wx2 Speaker
Playback Functions Play, Stop, Pause, Repeat, Previous/Next Track,Mute,Rotate,Interval Time,Play List and Media Classification
Max. Video Resolution 640 x480 (scaled to fix panel resolution)

*The weight information is for reference purpose.The actual weight will vary according to then options you choose,for example,the touch/glass option.
