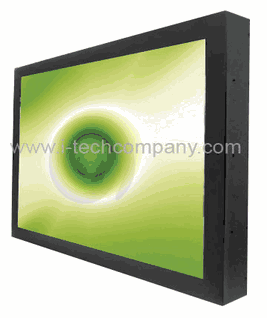

22" Digital Dynamic Signage Widescreen Chassis Mount Media Signage LCD (SD) (Model: WCHMS2200LS1)
22" Digital Dynamic Signage Widescreen Chassis Mount Media Signage LCD (SD) (Model: WCHMS2200LS1)
X
Inquiry/Quote Request
- Overview
- Download
Product discontinues. Contact us at Info@iTechLCD.com for replacement item.
| LCD Optical Spec : | |
| Active Display Area | 477.4mm(H)X268.4mm(V) |
| Pixel Pitch | 0.1165mmx0.3495mm |
| Number of Pixels | 1366x768 |
| Contrast Ratio | 2000:1 |
| Display Color | 16.7M(8bits for R,G,B) |
| Brightness(cd/m2) | 300 |
| View Angle(CR>=10) | -88~88(H);-88~88(V) |
| General / Content : | |
| General | |
| Storage Media | CF(512MB Optional with bigger capacity) (Need to be Linux ext2 format) |
| Content Update | Ethernet/WLAN/USB flash drive |
| VESA Mounting | Yes |
| Mechanical | Chassis |
| Content | |
| Video Format Support | MPEG1,MPEG2,MPEG4 |
| Graphic Forma Support | JPEG,BMP |
| Text Banner | Variable scrolling speed and position Support |
| Input/Output : | |
| Output | |
| Audio Output | 2 x 2W speakers |
| Video Output | 1 x DVI output to another monitor |
| Network connection | |
| Ethernet LAN | 1 x RJ45-10/100/Mbps |
| Environment Considerations: | |
| Operating Temperature | 0 to 50 OC |
| Humidity | 5-85%@50 OC |
| Power Specifications : | |
| Power Adapter | 12V DC in |
| Power Consumption | Approx:60W |
| Power Source | AC100~240V, Universal, 10% |
| Available Options: |
| RS232 x 1 |
| miniPCI for 802.11 b/g WLAN |
