Digital Media Player

Digital Dyanmic Signage Media Player BOX (Play CF/IBM Microdrive SM /MMC/SD/MS Card) (Model WMPC110)

Digital Dyanmic Signage Media Player BOX (Play CF/IBM Microdrive SM /MMC/SD/MS Card) (Model WMPC110)

WMPC110
  • Overview
  • Download
Please contact us at 1-888-483-2418 or sales@i-techcompany.com for price, further information, detail, or customized projects.

Features:

Display Output :
The video can be displayed on TV, LCD monitor and
Plasma monitor with the output format of composite
and S-Video video signal.
Storage Medium :
Compact Flash memory card
SM/ MMC/SD/MS card
Audio Output :
Stereo Output 2W*2 Speaker or Earphone Output
Standard Playback :
Standard player modes:play, stop, pause, repeat,
previous track, next track, volume control, mute.
Specific track or playlist select.

Specification

Play Format

MPEG1,MPEG2,MPEG4(Optional),JPG,Mp3

Storage Capacity

CF/IBM Microdrive SM /MMC/SD/MS Card

Video Ouput

Single type:Composite or S-Video Output format:PAL,NTSC
Video Resolution Resolutions:
352x288 pixels(PAL)
352x240 pixel(NTSC)
Still pictures:
704x576 pixels(PAL)
704X480 pixels(NTSC)
Audio Ouput(Optional) Steter Ouput 2W*2
Speaker or Earphone Ouput
Playback Functions Standard playback : Play,
Stop, Pause, Repeat,
Previous/Next Track,
Volume,mute Programmable
playback :special track or
play list select
Power Power input : 12V DC, 2A typical
Power consumption : 24W
Environment

Operating temperature : 0 C
to 50 C
Relative humidity :
5%-95% relative humidity,
non- condensing

Benefits:

  • Displays digital pictures (JPEG) without a computer.
  • Simply insert a compatible memory card into the digital frame to show photos, play Mp3 music or supported video files (memory card not included).
  • Compatible memory cards include Secure Digital Card(SD), MultiMedia Card(MMC), SmartMedia, Memory Stick, Memory Stick Pro, Microdrive, & Compact Flash(CF)Card.
  • Instantly plays Mp3 music with the build-in speakers.
  • Instantly plays MPEG 1,2,4(Optional) files stored in CF/Micro-Drive/SM/MMC/SD/MS
  • Supports up to 12 Mega Pixels image files(JPEG format).
  • Compatible with most digital camera's stored JPEG images and motion JPEG files.
  • Includes a credit card style remote control.
  • Automatic slide show with multiple transition effects and display times.

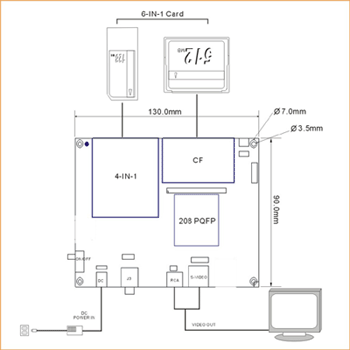

Implementation

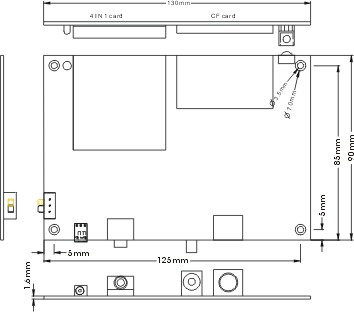

Drawing of Module
