D-300AL(aluminum ) Storm Series, 3U Rackmount Server Case
- Overview
- Download

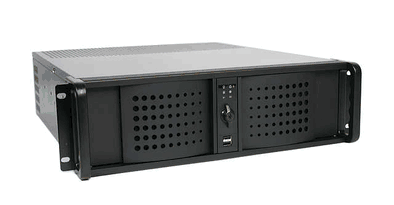

I-Star D-300AL Aluminum Rackmount Chassis with 300W PSU, front USB 2.0 port, and 60mm case fan
| Model No. | D-300AL Storm Series (aluminum version) |
| 5.25" Bay | 4x 5.25" |
| 3.5" Bay | 2x 3.5" 2x 3.5" (internal) |
| M/B factor | 12" x 9.6" ATX M/B |
| Switches : | Power ON/OFF, System & Alarm Reset |
| Indicators : | LEDs for Power ON/OFF, HDD, Fan & Alarm |
| Air Filter : | Removable & Washable |
| Fan & Temp. | Detecting Board For System Environment Monitoring (Optional ) TC-ISF08 |
| Ventilation | 1 x 60mm Ball Bearing Fan ( Standard ) 2x80mm;1x 60mm Ball Bearing Fans ( Optional ) |
| Material & Security : | 1.2mm SECC Zinc-Coated Steel (Japan Made) Both Front Doors (Aluminum) Are Lockable |
| Dimension | 19"(W) x 20"(D) x5.25"(H) |
| Front Access Connector : | USB 2.0 Port |
| I/O Ports | Stardard ATX Port |
| Safety Standard: | FCC/CE to chassis and FCC/CE/UL/TUV to power supply |
| Power Supply | I-Star 3U 300w/400w/460w I-Star 2U 350w/400w/460w Redundant power supply |
