Rackmount Fixed Shelves. Loading 150lbs (Optional Size Avalible)

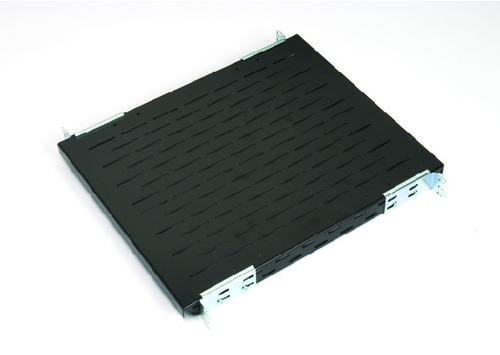

Rack Mount Fixed Shelves

E2 next generation fixed and sliding shelves feature a flow-through perforated design for maximum equipment ventilation. All fixed and sliding shelves feature adjustable shelf mounting brackets that adapt to all rail depths. Sliding shelves can be fully extended for easy access to equipment. All shelves are manufactured from 14 gauge (2.0mm) steel.

Default size is 19"W x 17 1/2"D. Click "OPTIONS" tab to select optional color and size.

Part Number	Max Rail Adjustment		Loading Rating	Color Options
	inch	mm
E2SH4P1920	24 1/2	622	150 lbs. (68kg)	Black(B)/Grey(A)
E2SH4P1924	28 1/2	724		Black(B)/Grey(A)
E2SH4P1930	34 1/2	976		Black(B)/Grey(A)
E2SH4P1936	40 1/2	1028		Black(B)/Grey(A)
E2SH4P1942	46 1/2	1181		Black(B)/Grey(A)
E2SH4P2320	24 1/2	622		Black(B)/Grey(A)
E2SH4P2324	28 1/2	724		Black(B)/Grey(A)
E2SH4P2330	34 1/2	976		Black(B)/Grey(A)
E2SH4P2336	40 1/2	1028		Black(B)/Grey(A)
E2SH4P2342	46 1/2	1181		Black(B)/Grey(A)
