Embedded Box System w/ Intel Core i5,32GBDDR4, 256GB NVME SSD, DC 12~24V, -40~70C, Windows 11 (Model: EGPC150WT)

Embedded Box System with Intel Tigerlake-UP3 CoreT i5-1145G7E Processor,32GBDDR4, 256GB NVME SSD, Removable 2.5" HDD/SSD Tray, DC 12~24V Wide Range PowerInput, -40~70C, Windows 11 IoT Enterprise (64-bit, 21H2, Pre-scan)

Embedded Box System with Intel Tigerlake-UP3 CoreT i5-1145G7E Processor,32GBDDR4, 256GB NVME SSD, Removable 2.5" HDD/SSD Tray, DC 12~24V Wide Range PowerInput, -40~70C, Windows 11 IoT Enterprise (64-bit, 21H2, Pre-scan)

Inquiry/Quote Request
EGPC150WT
  • Overview
  • Specifications
  • Download

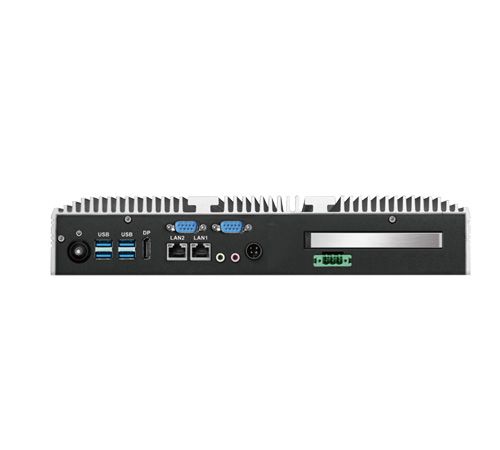

The Embedded Box System Intel Core i5 (model EGPC150WT) is a high-performance, compact, and fanless industrial PC designed for demanding environments. With an Intel Core i5 processor, this system offers robust computing power, ideal for automation, control systems, and industrial monitoring. It features multiple I/O ports for flexible connectivity and is built for long-term durability in harsh conditions. This system is perfect for industrial applications requiring reliability, efficiency, and space-saving solutions.


Features
  • Intel Tigerlake-UP3 Core i5-1145G7E Processor
  • Fanless Design
  • 4x USB 3.2 Gen2 Ports
  • 2x RJ45 GbE LAN (Intel I225-LM supports 2.5GbE LAN)
  • 1x Display Port
  • 1x HDMI
  • 4x RS-232/422/485
  • DC 12~24V Wide Range Power Input
  • 3-Pin Power Input Terminal Block
SYSTEM
CPU Intel TigerLake-UP3 Core i5-1145G7E Processor
System Memory & Storage 32GB DDR4 SO-DIMM
External IO Port 4 x USB 3.2 Gen2 Ports
2 x RJ45 GbE LAN (Intel® I225-LM supports 2.5GbE LAN)
1 x Display Port
1 x HDMI
4 x RS-232/422/485
1 x Audio out
1 x Power press button
1 x 3-Pin Terminal Block for Power Input
Storage 256GB M.2 NVME SSD
1x 2.5" Storage Bay
Operation System Windows 11 IoT Enterprise (64-bit, 21H2, Pre-scan)
Expansions 1 x M.2 B-key 2242/3042 (SATA 3.0, PCIe x1, USB 2.0)
1 x M.2 E-key 2230 (PCIe x1, USB 2.0)
ENVIRONMENT
Power Input DC 12~24V Wide Range Power Input
Mounting Wall Mount
Certification FCC/CE Class A
Operating Temp -40~70 °C, IEC-60068-2-1/2/14
Storage Temp -40~70°C
Humidity 10~90% @40 °C, non-condensing
EMC FCC / CE Class A Certification
Vibration & Shock 1.5 Grms @10~500Hz, IEC-60068-2-64
