Features

Intel HM55 Chipset
Compatible with Intel Core i5 & i7 CPUs, this chipset offers support for high quality Intel graphics and other Intel technologies.

DDR3 RAM
This product uses DDR3 RAM. DDR3 RAM has a transfer rate twice as fast as it’s predecessor (DDR2), which enables higher bandwidth.

Integrated SIM card reader
Integrated in a mini-PCIe slot, the SIM card readers allow for users to enable 3G use for their IPC.

Multi-Screen Support
This platform comes with multiple video-out ports and can support separate video streams on dual displays

Fanless
This IPCs lifespan has been extended by removing the most easily damaged component, the fan.

Screw-locked power plug
This power plug is made to screw directly into the appliance chassis, allowing secure power connection in even the harshest of settings.

LED indicators
LED indicators makes it easy to check working status.

Multiple Display Ports
This platform comes with multiple video-out ports to allow easy integration with any signage setup.

Dust proof design
Solid chassis design with a fanless interior allows for this product to be completely dustproof when installed correctly, insuring longevity of the product.

Specifications



Dimension (WxHxD)		277x67x190mm (10.91”x2.67”x7.49”)
Processor		Intel i5/i7/Celeron
Chipset		HM55
System	Technology	DDR3 SODIMM x2
Memory	Max. Capacity	Up to 8GB
Storage	IDE	N/A
	SATA	2.5” HDD/SSD drive bay x1
Ethernet Controller		Intel 82574L x2
Graphic Controller		Intel® GMA HD Graphics
Audio Controller		Realtek ALC888S

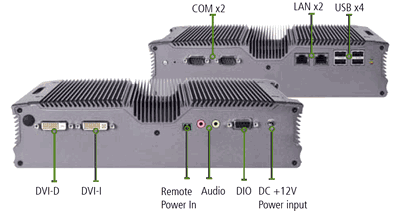

IO	LAN	GbE RJ45 x2
	Display	DVI-I x1, DVI-D x1
	Video Grabber	No
	Audio	Phone jack x2 for Mic-in and Line-out
	Serial I/O	DB9 x2 for RS232 x2
	GPS	No
	Digital I/O	1 x female DB9 for DI x4 and DO x4 (5V TTL)
	USB 2.0	Type A x4; Internal x2
	Power Input	DC jack with lock
	Expansion	Mini-PCIe x1 with SIM card reader
	Others	External: Power-on button, Power-on switch, reset. Internal: PS/2 keyboard and mouse
Power Input		+12Vdc, ATX mode
AC Adapter		DC +12V, ATX mode
Hardware Monitor		Fintek F81865 To monitor voltages & temperature for CPU & System
OS Support		Linux , XPE/WES2009, XP PRO FES, WS7E, WS7P, WIN 7 PRO-E
Certifcations		CE, FCC Class A
Compliance		No 0~45°C/32~113°F
Operating Temperature Range	With Industrial Components
	With Commercial Components	N/A
