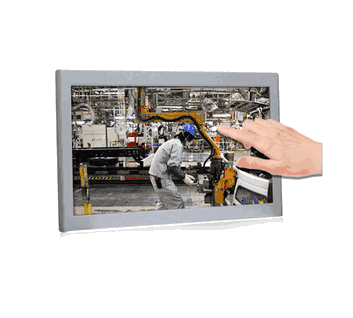

Fanless 17" full metal industrial panel PC with 5 wires resistive touch screen and Intel bay trail J1900 (Model: KCPC1700L1-BT)

Fanless 17" full metal industrial panel PC with 5 wires resistive touch screen and Intel bay trail J1900 (Model: KCPC1700L1-BT)

Fanless 17" full metal industrial panel PC with 5 wires resistive touch screen and Intel bay trail J1900 (Model: KCPC1700L1-BT)

Main Feature

    • Intel® Bay Trail Quad Core 2.0GHz CPU (CPU OnBoard)
    • Touch panel LCD from 15" to 24"
    • Widescreen solution for 21.5" and 24"
    • Great HD Graphic Performance
    • DC input: 12V or 12/19/24V
    • 12V : up to 1 x GLAN, 3 x COM, 6 x USB, 1 x VGA
    • 12/19/24V : 2 x GLAN, 2 x COM, 4 x USB, 1 x VGA, 1 x HDMI
    • 1 x PCIe slot (12V) / 1 x PCI slot (12/19/24V), 1 x Mini PCIe slot (with mSATA function)
    • DC in power terminal block (DC in 9V ~ 36V)
Inquiry/Quote Request
KCPC1700L1-BT
  • Overview
  • Specifications
  • Download
  • Contact Sales
KCPCXXXXL1-BT Series is powered with Intel's new Bay Trail Quad Core CPU. It's graphics has a performance that enables advanced visualization.

With a chassis design of Black Metal/Silver and excelent performance but low consumption power supply. It's a fanless design Panel PC and compact solution with 5 wires resistive touch screen.

Has a variety selection of sizes available in black metal chassis design from 15 to 21.5 inches, for silver metal chassis design it's ranges from 15 to 24 inches. Also has a widescreen solution for 21.5 and 24 inches (16:9). RFID sensor can be integrated for RFID technology application into the device.

Specifications:

Display Size / Aspect Ratio 17" TFT (4:3)
Backlight LED
Resolution 1280 x 1024
Colors 16.7 M
Luminance (cd/m2) 350
Contrast Ratio 1000:1
Viewing Angle (H/V°) 140/170
MTBF (hrs) 50,000
Touch Screen 5-wire resistive
Dimension (W x H x D, mm) TBD
Weight (kg) TBD
Color Black ( front ) / Sliver ( back )

CPU Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor (CPU OnBoard)
Memory 2 x 204-pin SODIMM Dual-channel DDR3L 1333 / 1066MHz up to 8 GB
Power Supply DC in 12V external power adaptor DC in 12V / 19V / 24V external power adaptor
I/O Ports (Default) 1 x RS232, 1 x GLAN, 4 x USB, 1 x VGA, 1 x Line-out, 1 x Mic-in, 1 x SATA socket 1 x RS232, 1 x RS232/422/485, 2 x GLAN, 4 x USB,1 x VGA, 1 x HDMI, 1 x Line-in, 1 x Line-out,1 x Mic-in, 1 x SATA socket
I/O Ports (Optional) Extra 2 x RS232, Extra 2 x USB N/A
Expansion 1 x PCIe slot, 1 x Mini PCIe slot (w/ mSATA function) 1 x PCI slot, 1 x Mini PCIe slot (w/ mSATA function)
Operation Temperature 0°C ~ 45°C
Storage Temperature -10°C ~ 70°C
Relative Humidity 0% ~ 90% non-condensing
OS Support Win 7 Pro, Embedded 7, Win 8 Pro, Embedded 8
Installation VESA mount 100 x 100 mm
Optional Items Waterproof gasket, External DVD-RW driver, RFID sensor, None touch screen, Open frame, Stainless front bezel, Mounting clips, Memory, Storage devices, WiFi, OS
