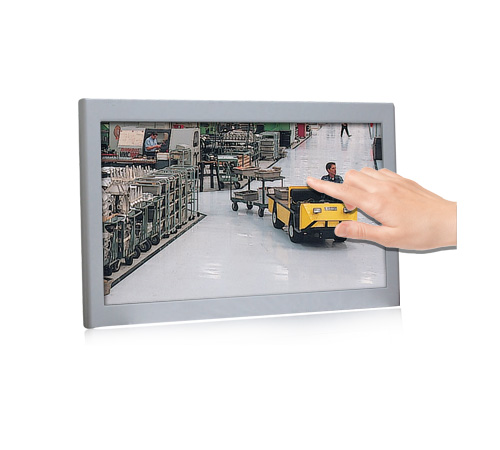

Fanless 19" full metal chassis industrial panel PC with 5 wire resistive touch screen and Intel i3 4010U (Model: KCPC1900-i3)

Fanless 19" full metal chassis industrial panel PC with 5 wire resistive touch screen and Intel i3 4010U (Model: KCPC1900-i3)

Fanless 19" full metal chassis industrial panel PC with 5 wire resistive touch screen and Intel i3 4010U (Model: KCPC1900-i3)

Main Feature

    • Touch panel LCD from 15" to 24"
    • Mini-ITX with 4th Gen Intel i3-4010U CPU (CPU on board)
    • Low power consumption yet powerful performance
    • Fanless Design
    • Widescreen solution for 21.5" and 24"
    • Great Graphics Performance
    • Silver metal chassis design
    • DC input : DC in 12V or 19V ~ 24V external power adapter
    • Up to 2 x GLAN, 4 x COM, 4 x USB, 2 x HDMI
    • External DVD-RW driver (optional)
    • DC in power terminal block (DC in 19V ~ 24V)
    • RFID sensor (optional)
Inquiry/Quote Request
KCPC1900-i3
  • Overview
  • Specifications
  • Download
  • Contact Sales
i-Tech's KCPCXXXX-i3 Series is powered with 4th Gen Intel i3-4010U CPU. It's a high-tier panel pc with low power consumption yet powerful performance under fanless design. And also its graphics has a performance that enables advanced visualization. It allows you to expand system functionality with PCIe and a Mini PCIe slot. Provides you a possibility to expand more applications by equipping with one CFast CF card socket / CF card socket and one Mini PCIe slot. Has a variety selection of sizes available in black metal chassis design from 15 to 21.5 inches, for silver metal chassis design it's ranges from 15 to 24 inches. Also has a widescreen solution for 21.5 and 24 inches (16:9).
Display Size / Aspect Ratio 19" TFT (4:3)
Backlight LED
Resolution 1280 x 1024
Colors 16.7 M
Luminance (cd/m2) 250
Contrast Ratio 1000:1
Viewing Angle (H/V°) 170/160
MTBF (hrs) 50,000
Touch Screen 5-wire resistive
Dimension (W x H x D, mm) 500 x 405 x 74
Weight (kg) TBD
Color Black ( front ) / Sliver ( back )

CPU Intel® Core™ i5-4300U / i7-4650U / i3-4010U / Celeron® 2980U CPU
Memory 2 x 204-pin SODIMM Dual-channel DDR3L 1333/1066MHz up to 16GB
Power Supply DC in 12V or 19V ~ 24V external power adaptor
I/O Ports (Default) 2 x GLAN, 4 x USB, 2 x HDMI, 1 x Line-out, 1 x Mic-in, 3 x SATA socket
I/O Ports (Optional) 2 x RS232, 2 x RS232/422/485
Expansion 1 x PCIe slot, 1 x Mini PCIe slot
Operation Temperature 0°C ~ 45°C
Storage Temperature -10°C ~ 70°C
Relative Humidity 5% ~ 90% non-condensing
OS Support Wn 7 Pro, Embedded 7, Win 8 Pro, Embedded 8, Win 8.1 Pro, Embedded 8.1
Installation VESA mount 100 x 100 mm
Optional Items External DVD-RW driver, RFID sensor, Memory, Storage devices, WiFi, OS Support
