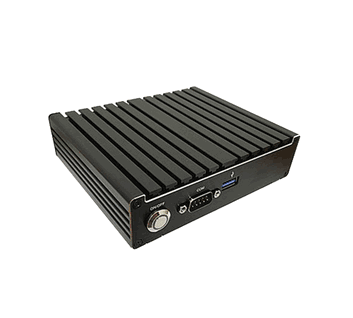

Fanless Embedded PC with Intel Bay Trail-M Celeron N2930 2xUSB 2.0, 2xHDMI, 9V~24V DC-in (Model: JT660PC-N29)

Fanless INTEL Bay Trail-M Celeron N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W , 2 * USB 2.0 ports , 2 * HDMI, 1 * RJ-45 port, 1 * 9V ~ 24V DC-in jack ***Support PXE boot***

Fanless INTEL Bay Trail-M Celeron N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W , 2 * USB 2.0 ports , 2 * HDMI, 1 * RJ-45 port, 1 * 9V ~ 24V DC-in jack ***Support PXE boot***

Main Feature

    • INTEL Bay Trail-M N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W
    • Embedded Long-life Series, Planned Lifecycle Through Q1’2029
    • New Thin Model – Only 34mm Tall
    • 9V~24V DC jack on back panel for external power supply
    • 2 x HDMI & DDR3L
    • ECO-design for EuP/ErP
Inquiry/Quote Request
JT660PC-N29
  • Specifications
  • Download
Motherboard Specification
CPU Fanless INTEL Bay Trail-M Celeron N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W
Memory 1 x 204-pin DDR3L-1333 SO-DIMM Single Channel up to 8 GB (1.35V required)
VGA Intel HD Graphics
LAN 1 x Intel I210-AT Gigabit Ethernet (from 5/2020 and up)
* 1 x Intel 82574L Gigabit Ethernet (up to 4/2020)
Audio Realtek ALC887 Audio CODEC with SPDIF out
Storage 1 x full size mSATA Slot
Wireless / Mini-PCIE Slot 1 x half size Mini-PCI Express Slot WiFi + Bluetooth
Board Form Factor NUC Form Factor (101mm X 101mm)
Chassis Specification
Product size 129W * 109D * 34H mm
Material Lightweight aluminum alloy with extruded aluminum IO panel
Color Black
Storage mSATA only
Front I/O Port 1 * Power Button
1 * Power LED
1 * COM port
1 * USB 3.0
Rear I/O Port 2 * USB 2.0 ports
2 * HDMI
1 * RJ-45 port
1 * Audio line out with SPDIF out
1 * 9V ~ 24V DC-in jack
1 * SMA Connector for WiFi Antenna
1 * Kensington Lock Hole
Power Adapter : AC_90~240V / DC_12V_3A/36W
Environment Operating Temperature : 0 ~ 40°C with air flow
Storage Temperature : -20 ~ 80°C
Functional Digital Signage, Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK, HTPC
Certificate CE,FCC,ErP For Barebone
CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter
