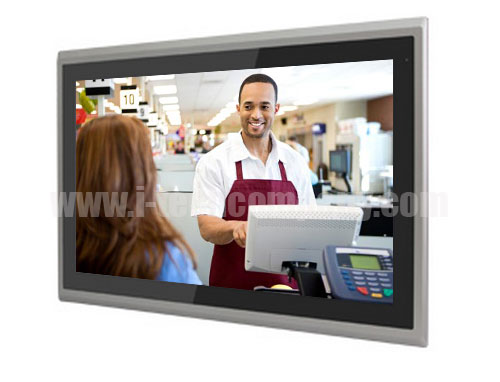

21.5" Full HD HMI panel PC Intel ATOM N2930(1.83GHz), Onboard 4GB DDR3 memory, 1x 2.5in SATA2 Drive Bay. (Model: AHM2150-AT)
- Overview
- Download
- 21.5" TFT-LCD Projected Capacitive Touch.
- Intel Bay Trail Atom E3845/Celeron N2930 Processor.
- Onboard 2GB DDR3L 1600MHz/4GB(option).
- Aluminum Die-Casting Chassis Fanless Design.
- Easily Accessible Storage Design
- Flat Front Panel Design Meets IP65 Standard.
21.5" Full HD HMI panel PC Intel ATOM N2930(1.83GHz), Onboard 4GB DDR3 memory, 1x 2.5in SATA2 Drive Bay. (Model: AHM2150-AT)
X
Inquiry/Quote Request
Features
Specifications
| SYSTEM | |
| Processor | Onboard Intel Bay Trail N2930(1.83GHz) Processor / E3845(1.91GHz ) for option |
| System Chipset | SoC |
| Memory | Onboard 2GB DDR 3L 1600 MHz/4GB(option) |
| IO PORT | |
| USB | 1 x USB 2.0 type A 1 x USB 3.0 type A |
| Serial/Parallel | 1 x RS-232 DB-9(COM2) 1 x DB-9 RS-232/422/485 (Default RS-232)(COM1) 1 x HDMI Port (Reserved, no printing) |
| Audio | 1 x Audio Line Out |
| LAN | 2 x GbE LAN RJ-45 |
| HDMI | 1 x HDMI Port (reserved, no printing) |
| Power | 1 x 3-pin DC Power input terminal 1 x 2-pin connector for power on/off button |
| Option | 2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1 |
| STORAGE SPACE | |
| HDD | 1 x 2.5" SATA HDD bay for SATA HDD (Easy Accessible) |
| Movable device | 1 x SD card slot, up to 32GB |
| EXPANSION | |
| Expansion | 1 x Internal Mini-PCIe slot full size |
| DISPLAY | |
| Display Type | 21.5” TFT-LCD |
| Max. Resolution | 1920x1080 |
| Max. Color | 16.7M |
| Brightness | 250 |
| View Angle | H:178° / V:178° |
| Contrast Ratio | 3000:1 |
| Backlight Lifetime | 50,000 hrs |
| Touch screen-Resistive Touch Window Type | |
| Interface | USB |
| Light Transmission(%) | 80% |
| Touch screen-Projected Capacitive Type | |
| Interface | USB |
| Light Transmission(%) | 90% |
| POWER SUPPLY | |
| Power Input | 9~36V DC |
| Power Consumption | 26.6W |
| MECHANICAL | |
| IP Rating | IP65 Compliant Front Panel |
| Front Bezel Metal | Aluminum / Panel Mounting |
| Rear Panel Metal | Aluminum / VESA 100 x 100 |
| Dimension | 577mm x 362mm x 64.8mm |
| Net Weight | 7.5 Kg |
| ENVIRONMENTAL | |
| Operating Temperature | 0~50 OC |
| Storage Temperature | -20~60 OC |
| Storage Humidity | 10 to 90%@ 40˚C, non-condensing |
| Certificate | CE / FCC CLASS A |
| Operating System Support | |
| Windows Embedded Compact 7, Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded 8 Standard, Windows 8.1, Windows Embedded 8.1 Industry | |
