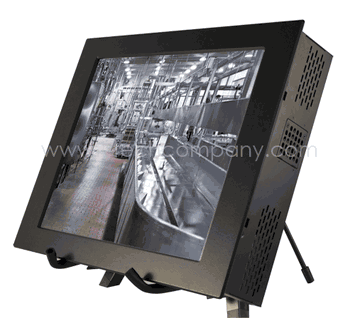

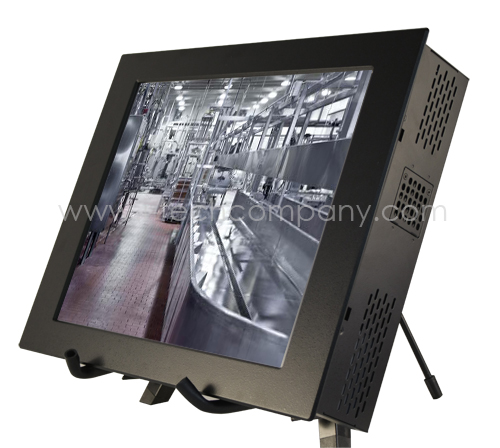

17" Fanless Panel PC with Touch Screen, Core™ 2 Duo, 2W Stereo Speaker, Video Capture, 6 COM, 6 USB, +12V~24V DC IN, Battery Support (Model: BMPC1700CTX)

17" Fanless Panel PC with Touch Screen, Core™ 2 Duo, 2W Stereo Speaker, Video Capture, 6 COM, 6 USB, +12V~24V DC IN, Battery Support (Model: BMPC1700CTX)

17" Fanless Panel PC with Touch Screen, Core™ 2 Duo, 2W Stereo Speaker, Video Capture, 6 COM, 6 USB, +12V~24V DC IN, Battery Support (Model: BMPC1700CTX)

Inquiry/Quote Request
BMPC1700CTX
  • Overview
  • Download

Features

  • Fanless, aluminum front panel design
  • 17" TFT color panel display w/ touch screen
  • Supports Intel® Core™ 2 Duo processor TD P ≤ 25W
  • V G A , Gigabit Ethernet, A udio port
  • 2W Stereo Speaker
  • 2 x 2.5" SATA HDD space, 1 x slim CD-ROM space
  • 1 x CF, 1 x mini PCI socket
  • 6 x COM port, 6 x USB 2.0 port, parallel port
  • COM port voltage output
  • +12V ~24V DC IN
  • Option for 5000m A/H Battery support
  • Option for Video Capture
  • Option for Wireless LAN module



System

LCD:
Size: 17"
Max. Brightness: 1280 x 1024 pixels
Brigntness: 300 cd/m²
Contrast Ratio: 800:1
Max. Color: 16.7M colors/RGB 8-bits
Pixel Pitch: 0.264 x 0.264 mm
Touch Screen:
17" resistive
SBC:
HS-8602
CPU:
Intel® Core™ 2 Duo processor P7350 2.0GHz (option)
System Chipset:
Intel® GM45/ICH9-M
System Memory:
2 x 204-pin SO-DIMM, DDR3 1066/800MHz, Max. 4GB
Display Interface:
1 x D-SUB 15-pin
1 x Video Capture BNC (option)
Audio Interface:
Audio jack for MIC In, Line Out
2W Amplifier with Stereo Speaker
Ethernet Interface:
1 x RJ-45 for Gigabit Ethernet
1 x mini PCI wireless LAN module (option)
Storage:
2 x 2.5" SATA HDD space
1 x slim CD-ROM space
1 x Type II CF socket
Expansion Interface:
1 x Type III mini PCI socket
Watchdog Timer:
Software programmable time-out intervals from 1~255 sec. or 1~255 min.
H/W Status Monitor:
Monitoring temperatures, voltages status
Power:
12V 84W DC adapter with lockable jack
+12V~24V DC IN
5000mA/H Battery (option)
Operating/Storage Temperature:
0~45 degrees C/-20~+70 degrees C
Certification:
FCC/CE Class A compliance
IP65 front panel protection compliance
Dimensions:
45.0(L) x 37.0(H) x 6.5(W) cm
Cut Out Size:
40.4(L) x 32.4(H) cm


I/O Interface
