Features

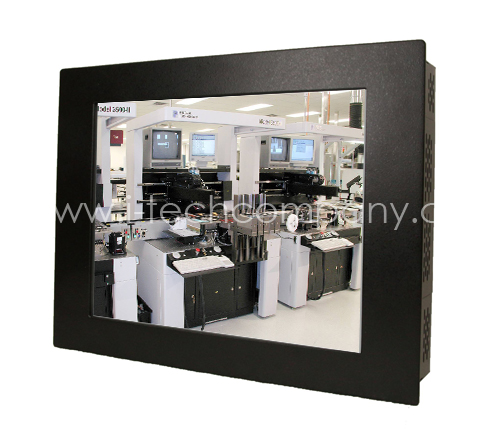

• Intel QM67 High Performance Panel PC
• Fanless Design
• Support Socket G2 for Intel® Core™ i7/i5/i3 processor
• 2 x DDR3 Slot Support up to 16G
• 2x 2.5" SATA HDD Space
• Resistive Touch Screen (Optional)
• Support 1 x Mini PCIe Slot and 1 x PCIe x16
• Wide Range Power Input DC 9~32V

Specifications

System
Processor	Intel® Socket G2 for Intel® Core™ i7/i5/i3 processor Socket G2 i7-271 OQE Quad Core 2.1G (TDP 45W) (Embedded CPU) Socket G2 i5-251 OE Dual Core 2.5G (TDP 35W) (Embedded CPU) Socket G2 i3-2330E Dual Core 2.2G (TDP 35W) (Embedded CPU)
System Memory	2  x 204-pin 1333/1066 DDR3 dual-channel SO-DIM, up to 16GB
System Chipset	Intel QM67 Chipset
Outside I/O Port	• 4 x USB 2.0 • 2 x GbE RJ45 LAN • 1 x DVI-I • 2 x DB-9 COM 1/2 RS-232 • 1 x DB-9 COM 3 RS-422/485 (default RS-485) • 1 x DB-9 COM 4 RS-232 • 1 x Audio (Line out, MIC out) • 1 x 2 pin power switch connector • 1 x 8 pin terminal block 3in/out/VCC/GND for option • 1 x DC 3pin terminal block power connector 9-32V
Solid Storage Disk	2 x 2.5 SATA HDD Space 1 x External CF slot
Expansion Slots	1 x Mini-PCIe slot on board 1 xPClex 16(Defanlt) 1 x PCI slot (Option)
OS Support	Support Windows XP Pro, XP Embedded, WSE7
LCD
Display Type	15” TFT-LCD
Max. Resolution	1024x768
Max. Color	16M
Luminance (cd/m2)	400
View Angle	H:160° / V:145°
Backlight Lifetime	50,000 hrs
Touchscreen
Type	5 Wire Resistive touch (option)
Light Transmission	80%
Power Supply
Power Input	DC Power input 9~32V
Mechanical
Structure	Steel Front Panel and Chassis Standard color: Black
IP Rating	Front Panel IP65 Compliance
Mounting	Panel Mount
Front Bezel	410x310mm
Thickness	116mm
Cut Out	392 x 292mm
Gross Weight	9kgs
Environmental
Operating Temperature	-10~50°C
Storage Temperature	-20~60°C
Storage Humidity	10~90% @40°C, non-condensing
Certificate	CE/FCC Class A Compliance
