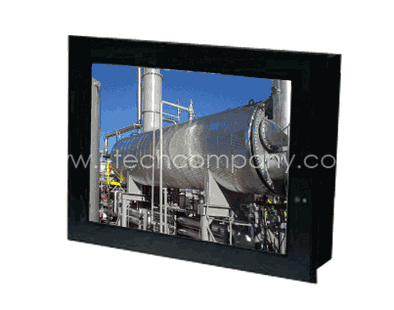

Fanless Panel PC 12.1" Atom N270 1.6GHz 945GSE 2GB (Max2GB) 2.5" 320GB 2 GigaLAN 4 COM2 @ 422/485 60W Adapter XP Pro 350 cd/m2 (Model: BBC1210)
- Overview
- Download
Fanless Panel PC 12.1" Atom N270 1.6GHz 945GSE 2GB (Max2GB) 2.5" 320GB 2 GigaLAN 4 COM2 @ 422/485 60W Adapter XP Pro 350 cd/m2 (Model: BBC1210)
X
Inquiry/Quote Request
Features
• Fanless• Intel Atom N270 1.6GHz processor, FSB 533 MHz
• NEMA4/IP65 compliant front panel
• Sealed resistive touch screen
• One 200 Pin SO-DIMM socket, up to 2GB DDR2 533 MHz SDRAM
• DC 11~32V wide-range power input
Specifications
| Processor System | Intel Atom N270 1.6 GHz built-in, FSB 533 MHz |
| Memory | 1 x 200 Pin SO-DIMM socket, support up to 2 GB DDR2 SDRAM |
| System Chipset | Intel 945GSE + ICH7M |
| External I/O Port | • 4 x USB ports • 2 x RJ-45 ports (GbE) • 2 x DB-9 (COM1/3, RS-232) • 1 x DB-9 (COM2, RS232/422/485 selection, default RS232) • 1 x VGA port • 1 x Audio, Line-out • 1 x DC Power input |
| Storage | • 1 x 2.5” SATA HDD • 1 x external CF slot |
| Expansion Slots | None |
| OS Support | Windows CE 5.0, XP Pro, XP Embedded, Windows 7 |
| LCD | |
| Display Type Max. | 12.1” TFT-LCD |
| Resolution Max. | 800x600 |
| Color | 262K |
| Luminance (cd/m2) | 350 |
| View Angle | H:140° / V:110° |
| Backlight Lifetime | 50,000hrs |
| Touchscreen | |
| Type | Sealed Analog Resistive Touch |
| Light Transmission | 80% |
| Power Supply | |
| Power Input | DC 11~32V |
| Mechanical | |
| Construction | Plastic Molding Front Panel and Metal Housing |
| Color | Black |
| IP Rating | NEMA4/IP65 Compliance (front panel) |
| Mounting | Panel / VESA 75x75 Mount |
| Dimension | 317(W)x243(H)x75.7(D) mm |
| New Weight | 5.82kgs |
| Evironmental | |
| Operating Temperature | 0-50 °C |
| Storage Temperature | -20-60 °C |
| Storage Humidity | 10-90% @40 °C non-condensing |
| Certificate | CE/FCC Class A Compliance |
